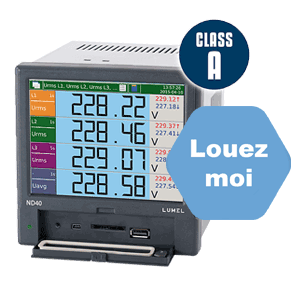

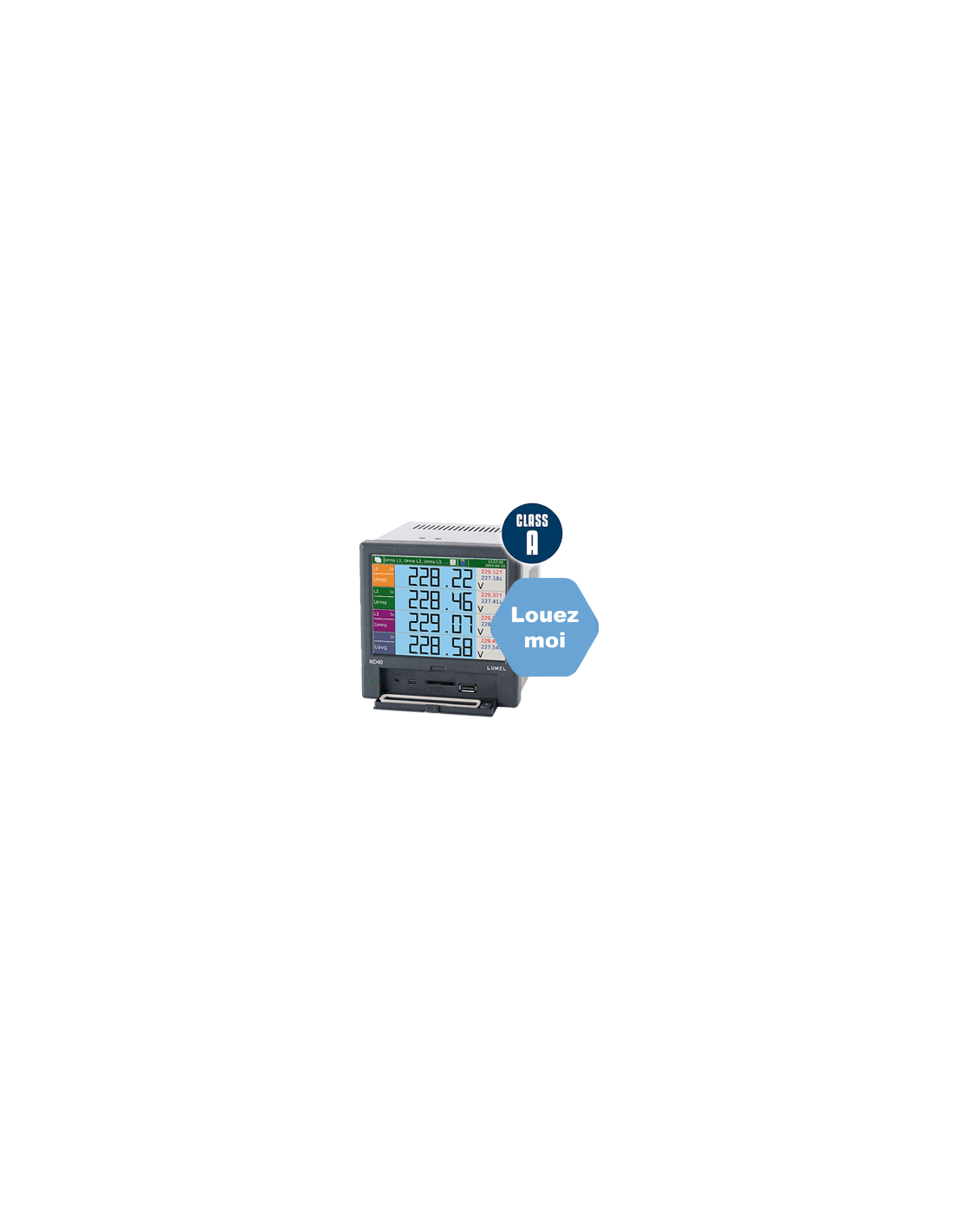

Three-phase power network analyser ND40, with webserver

ND40 three-phase power network analyser, with webserver

More
Reference
ND40_0000E0
€1,223.10 -5%
From €1,161.95 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788


Technical characteristics


Values measured
Power (active, reactive, apparent), voltage, current, energy,
Power factor (cos Phi), frequency, harmonic, Distortion rate (U et I)


 3 phases + neutral
Power supply
Power supply: 85-240V AC /90-320V DC
Power consumption: 35VA


Input

Voltage 230/400V
Current 1A ou 5A
6 logic inputs 0/5 to 24V DC
Temperature PT100: -200 to 850°C
PT1000: -200 to 850°C
resistance 0 to 5000O
Output
3 analogue outputs
8 relay outputs
0/4 to 20mA
NO 250V a.c / A a.c
 Specifications
IP 65 casing
0°C/50°C - <75 %RH
Measuring range
Volatge Input voltage max 3 x 230/400V
Current intensity max : 1A-5A
Precision
1%
Communication
Communication ports RS485 (Master/Slave), USB, Ethernet TCP/IP
Mounting
panel

Documentation

documentation technic-achat Document
documentation technic-achat Renting request

Certificates

certificat technic-achat CE Certificate

Online support

aide en ligne Technic-Achat Online support

Videos

vidéo Technic-AchatAssemblies and projects
