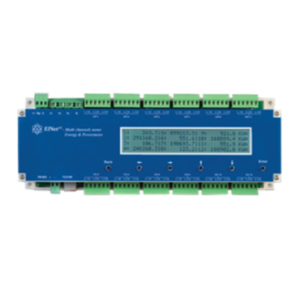

Elnet MC multi channels 12 sets

ELNET

Wattmeter 12 sets. RS485 communication and Ethernet port

More
Reference
WAT_MC
€1,165.68 -5%
From €1,107.40 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Multi channels wattmeter for electricity meter.
Built-in RS 485 MODBUS communication and Ethernet port TCP/IP

Technical characteristics
Measurement parameters
Input: up to 12 sets of three-phase, 36 in single-phase
Power, voltage, current, power factor (cos Phi), frequency, energy
Power supply
Power supply 90-250V AC 50/60Hz - 110-280V DC
Energy consumption: 20VA

Specifications
Dimensions:
110 x 300 x 60 mm / 1.2kg
Backlit LCD display
Operating conditions:
-20°C/70°C
0- 95% RH

Measurement range
Voltage:
0 - 650V AC
With CT: up to 999999999MV
Max input voltage 1000V
Current:
With CT: up to 999999999MA
Maximum current: 6A.
Precision
0.2%, 1600  samples per cycle
Communication
RS485 communication port (Modbus RTU 8,1,N(ou E),1)
Etherhet communication port (TCP/IP)
Mounting
DIN rail
Certifications
IEC 62053-22, IEC 62053-23, IEC 62052-11



Documentation

documentation technic-achat Sales document
documentation technic-achat Display and menu
documentation technic-achat User's manual
documentation technic-achat Wiring
documentation technic-achat MODBUS Protocol
