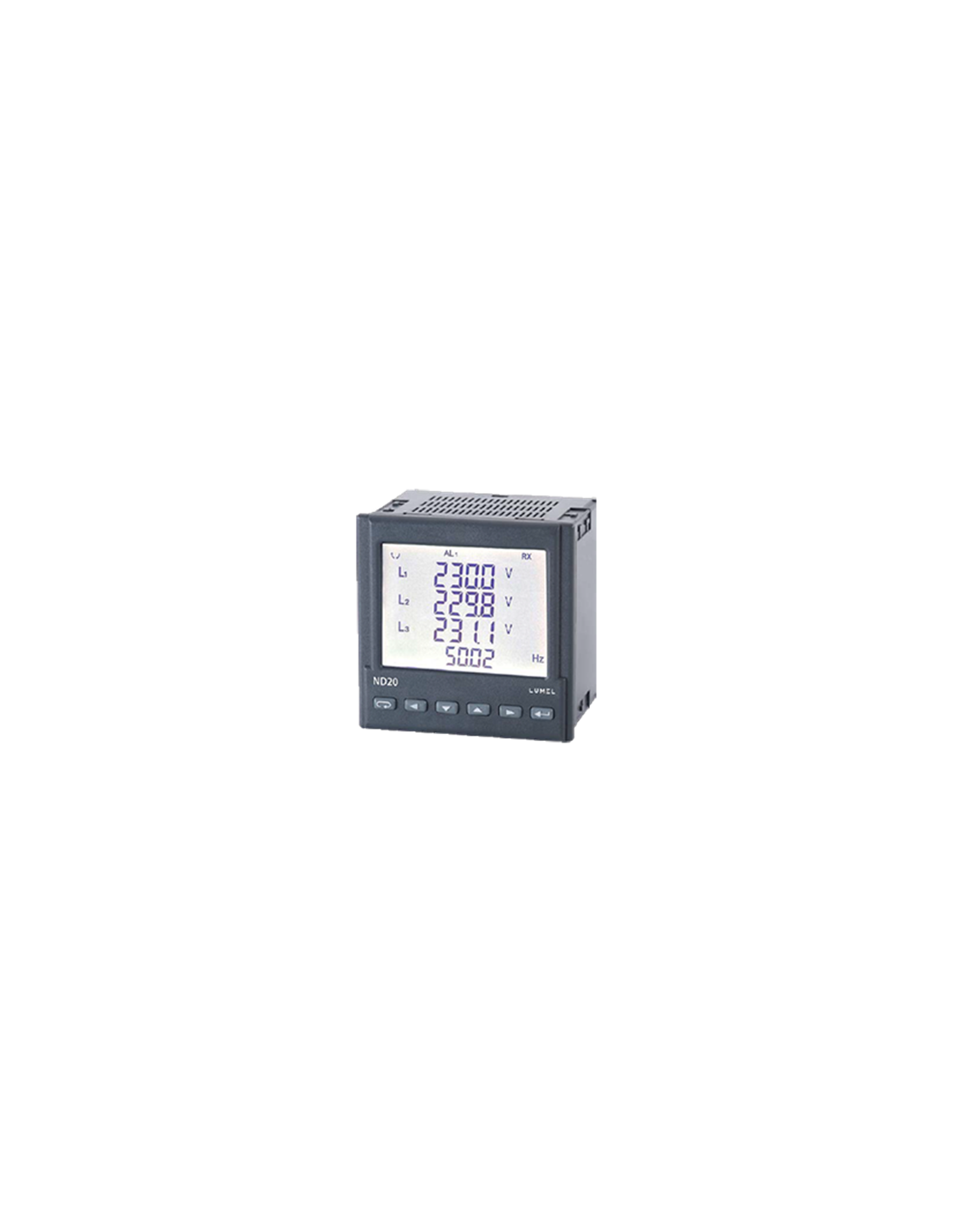

Wattmeter ND 20 3-phase 230/400V 5A V, I, P (Q, S), F, PF, THD RS485
3-phase digital wattmeter
I, P (Q, S), F, PF, THD RS485
3-phase wattmeter Lumel
Technical characteristics
WAT_ND20220200E0
WAT_ND20220100E0
Measured parameters
Power (active, reactive, apparent), voltage, intensity,
Power factor (cos Phi), frequency
3 neutral phases
Power factor (cos Phi), frequency
3 neutral phases
Power (active, reactive, apparent), voltage, intensity,
Power factor (cos Phi), frequency
3 neutral phases
Power factor (cos Phi), frequency
3 neutral phases
Supply voltage
20-40VAC / 20-60VDC /20VA
85-253 VAC / 90-300VDC
Dimensions
96 x 96 x 77 mm / 300 gr
96 x 96 x 77 mm / 300 gr
Conditions of use
-25°C/55°C25- 95 %RH
-25°C/55°C25- 95 %RH
Measuring range
Max input voltage 3 x 230/400 V
Max intensity: 5A
Max intensity: 5A
Max input voltage 3 x 230/400 V
Max intensity: 5A
Max intensity: 5A
Precision
1%
1%
Communication
Interface type RS485
Interface type RS485
Mounting
on panel
on panel
| Reference | WAT_ND20220200E0 WAT_ND20220100E0 |
| Combinations | Reference | Reference | Stock | Price | Add to cart |
|
Reference :
WAT_ND20220200E0
Reference : WAT_ND20220200E0
|
WAT_ND20220200E0 |
WAT_ND20220200E0 |
Available now Stock : 5 |
€329.86 Tax excl. €313.37 Tax excl. - 5% |
€329.86 Tax excl. |
|
Reference :
WAT_ND20220100E0
Reference : WAT_ND20220100E0
|
WAT_ND20220100E0 |
WAT_ND20220100E0 |
Available now Stock : 2 |
€330.00 Tax excl. €313.50 Tax excl. - 5% |
€330.00 Tax excl. |
