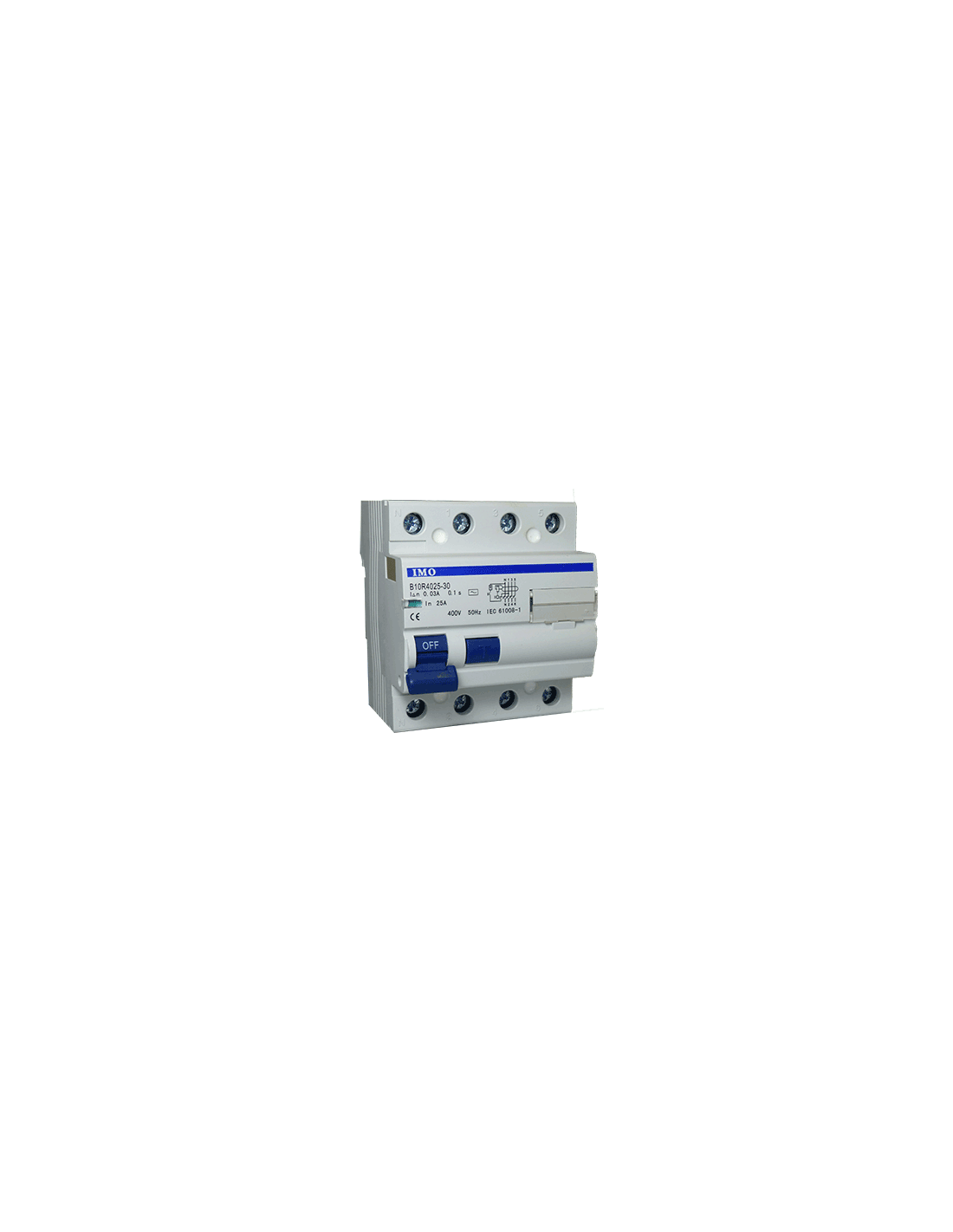

Four-pole residual current device switch

Name: Four-pole residual current device switch
Brand: IMO
SKU: DISR1040
Price: 40.13 EUR
Availability: InStock

Four-pole residual current device switch from 16A to 63A, AC type

Leakage current

Nominal current

Reference DISR1040_2530

Last items in stock

€42.24 -5%
€40.13 Excl. tax

Functions:

Load cut-off when:

- Defects in conductors insulator for an electric load; (leakage protection phase/earth-30 mA).

- Contact voltage (leakage protection phase/earth 30 mA).

Technical characteristics:

-Operating nominal voltage: 230/400V; 50 Hz, 60 Hz.

-Breaking capacity: 10 KA.

-Automatic circuit breaker response time <0.1s.

-Connecting terminals: 25 mm².

-Resistance to electro-mechanical wear (number of cycles): 4000.

-Level of protection: IP20.

Reference

Pole number

Nominal current

Leakage current

DISR1040-1630

16A

30mA

DISR1040-2530

25A

30mA

DISR1040-3230

32A

30mA

DISR1040-4030

40A

30mA

DISR1040-6330

63A

30mA

DISR1040-63300

63A

300mA

DISR1040-100300

100A

300mA

Documentation

documentation technic-achat Technical document

Online support

aide en ligne Technic-Achat Guide for choosing electrical protections
Types of Earthing systems
How to protect an electrical equipment?

Videos

schema interrupteur différentiel tétra-polaire

Leakage current	30 mA 300 mA
Nominal current	25A 32A 40A 63A 100A

Combinations	Leakage current	Nominal current	Reference	Stock	Price	Add to cart
Leakage current : 30 mA Nominal current : 25A Reference : DISR1040_2530 Stock : 3	30 mA	25A	DISR1040_2530	Available now Stock : 3	€42.24 Tax excl. €40.13 Tax excl. - 5%	€42.24 Tax excl. €40.13 Tax excl. (- 5%)
Leakage current : 30 mA Nominal current : 32A Reference : DISR1040-3230 Stock : 2	30 mA	32A	DISR1040-3230	Available now Stock : 2	€43.92 Tax excl. €41.72 Tax excl. - 5%	€43.92 Tax excl. €41.72 Tax excl. (- 5%)
Leakage current : 30 mA Nominal current : 40A Reference : DISR1040-4030 Stock : 8	30 mA	40A	DISR1040-4030	Available now Stock : 8	€43.89 Tax excl. €41.70 Tax excl. - 5%	€43.89 Tax excl. €41.70 Tax excl. (- 5%)
Leakage current : 30 mA Nominal current : 63A Reference : DISR1040-6330 Stock : 3	30 mA	63A	DISR1040-6330	Available now Stock : 3	€50.11 Tax excl. €47.60 Tax excl. - 5%	€50.11 Tax excl. €47.60 Tax excl. (- 5%)
Leakage current : 300 mA Nominal current : 63A Reference : DISR1040-63300 Stock : 4	300 mA	63A	DISR1040-63300	Available now Stock : 4	€50.30 Tax excl. €47.79 Tax excl. - 5%	€50.30 Tax excl. €47.79 Tax excl. (- 5%)
Leakage current : 300 mA Nominal current : 100A Reference : DISR1040-100300 Stock : 2	300 mA	100A	DISR1040-100300	Available now Stock : 2	€50.52 Tax excl. €47.99 Tax excl. - 5%	€50.52 Tax excl. €47.99 Tax excl. (- 5%)
