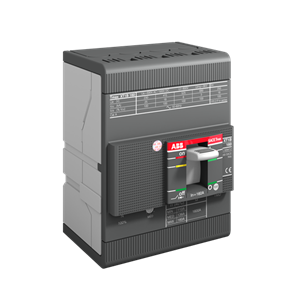

Thermal-magnetic circuit breaker 4P XT1C 160 TMD 100A 4P FF 1SDA067406R1

Thermal-magnetic circuit breaker 4P XT1C 160 TMD 100A 4P FF

More
Nominal current
ABB_DIJ_4P_100A
€313.80 -5%
From €298.11 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788





 Thermal-magnetic circuit breaker by ABB features a 4-pole current and a varying current from 100 to 630A. To control and protect your electrical motors, the thermal-magnetic circuit breaker is essential.


Technical characteristics:
►Number of poles: 4-pole
►Rated current: depending on the model up to 630A
►Rated voltage: 690V
►Current type: AC/ DC


Reference
Current
Dimensions
Weight
Model
International ref
Doc pdf
ABB_DIJ_4P_100A
100 A
70x101.6x130mm
1.366kg
XT1
1SDA067406R1
documentation gabarit de perçage sans poignée
ABB_DIJ_4P_160A
160 A
70x101.6x130mm
1.381kg
XT1
1SDA067410R1
documentation gabarit de perçage sans poignée
ABB_DIJ_4P_250A
250 A
70x140x150mm
1.64kg
XT3
1SDA068070R1
documentation gabarit de perçage sans poignée
ABB_DIJ_4P_400A
400 A
103.5x186x205mm
6.4kg
XT5
1SDA100396R1
documentation gabarit de perçage sans poignée
ABB_DIJ_4P_630A
630 A
103.5x280x268mm
12kg
XT6
1SDA107571R1
documentation gabarit de perçage sans poignée
