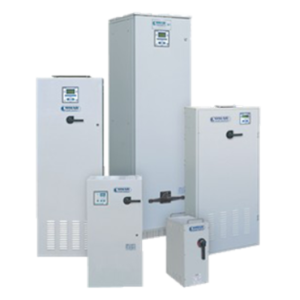

Automatic batteries for regulated tariff BATJA
Delivery throughout Europe
Secure payment
English speaker +33535565788
Automatic batteries are designed to compensate networks at a regulated tariff, enabling the available eletrical power to be increased, and keeping the original contract.
Three-pole contactors:
Each battery is controlled by its own contactor with the appropriate size. The integrating overcurrent is obtained by inductance or pre-charge resistors.
Power supply 400V AC 50Hz.
Capacitors:
Single-phase self-healing type, made with metallised polypropylene film, feature an overpressure protection system and decharge resistor (IMQ approved). They do not have a PCB.
Capacitors connection: triangle.
Operating voltage: 500V AC
Capacity tolerance: 5 % / +10%
Maximum dissipation loss: 0,4 W/Kvar
Temperature class: -25/ D
