3-phase motor 220/380V 3000 rev IE3

Name: 3-phase motor 220/380V 3000 rev IE3
Brand: EUROPEAN ELECTRIC COMPANY
SKU: MOT2EC2P
Price: 56.36 EUR
Availability: InStock

3000 rev, feet mounted (B3),
Power of 0.18 to 7.5 KW IE3

Power kW

Reference 63A2

€59.33 -5%
From €56.36 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

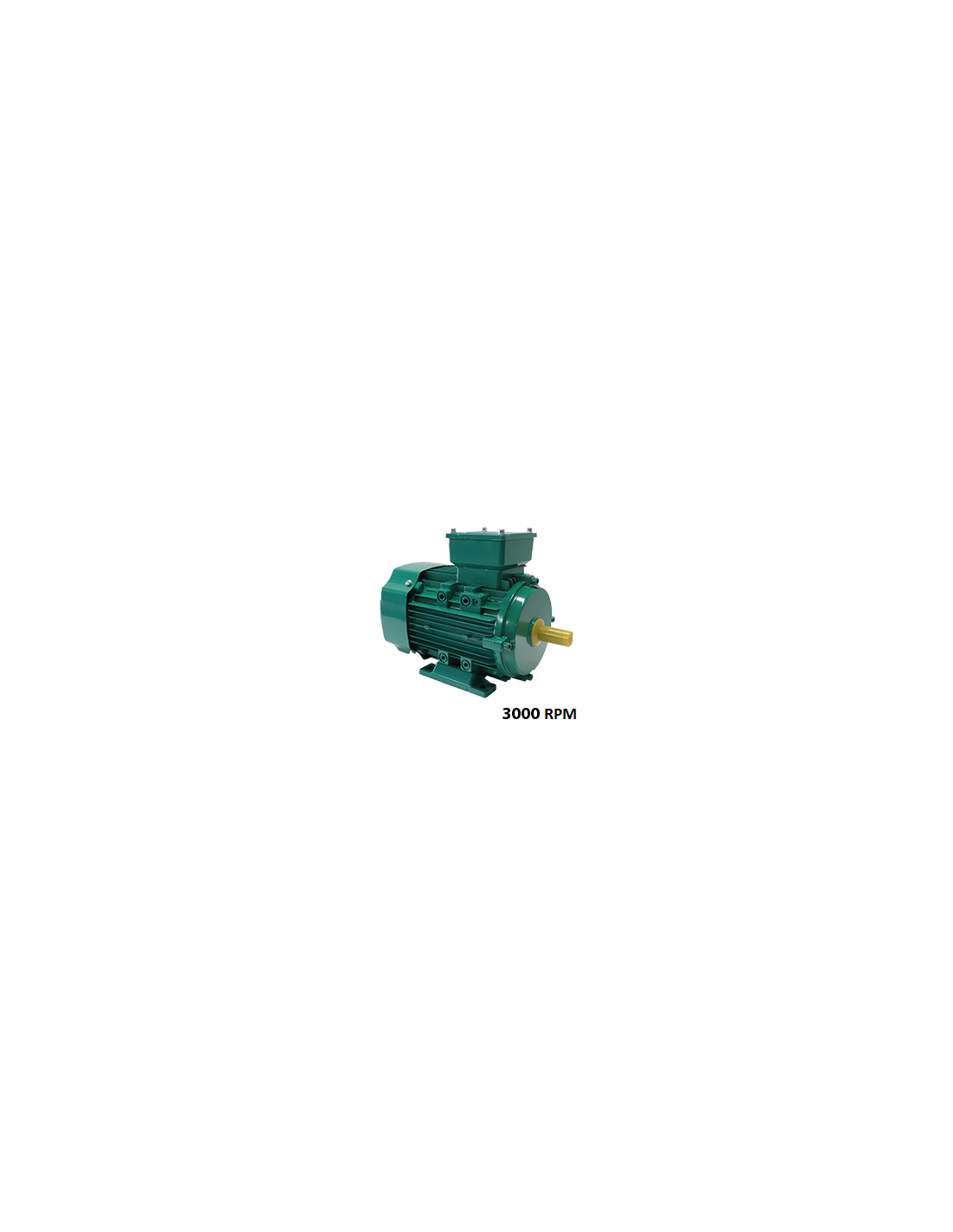

Electrical AC motor 3000 RPM, foot mounted

Made for harsh applications, made in aluminium to use in all types of environments.
The motor is mechanically very robust.
Can be used with a variable frequency drive for gaining more energy.

Characteristics:

- Speed: 3000 RPM- Fixed on foot (B3)
- Cast aluminium carcass
- Effective protection against corrosion
- Bearing high load carrying capacity
- Adapted to use a variable frequency drive
- Protection rating: IP55
- 1-year warranty
- Non-contractual colour

The overall dimensions of the motors may differ slightly from the dimensional drawing. Mounting centres, shaft diameter and height remain unchanged.

Power kW	References	Speed RPM	Power HP	Intensity 380V Y Amp.	Diameter Axis (D)	Torque Tn/Nm	Weight Kg
0.09	56A2	2750	0.12	0.27	9	0.31	3.6
0.12	56B2	2750	0.18	0.35	9	0.41	3.9
0.18	63A2	2720	0.25	0.55	11	0.61	4.8
0.25	63B2	2720	0.34	0.7	11	0.96	5.1
0.37	71A2	2780	0.5	0.9	14	1.26	6.0
0.55	7182	2785	0.75	1.3	14	1.88	6.5
0.75	80A2	2840	1	1.7	19	2.54	8.7
1.1	8082	2855	1.5	2.4	19	3.72	9.5
1.5	90S2	2850	2	3.2	24	5.04	11.8
2.2	90L2	2850	3	4.5	24	7.40	13.5
3.0	100L2	2860	4	5.9	28	9.95	21.0
4.0	112M2	2900	5.5	7.6	28	13.22	28.0
5.5	132SA2	2920	7.5	10.2	38	18.11	39.0
7.5	132S82	2920	10	13.6	38	24.70	44.5

Plan dimensionnel et entraxes de fixation pour moteur triphasé B3
