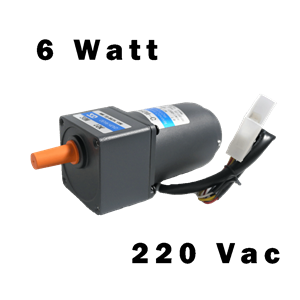

Compact gear motor type 2 - 6 W

Name: Compact gear motor type 2 - 6 W
Brand: ZD MOTOR
SKU: MZD_2M4_006_XXX
Price: 13.78 EUR
Availability: InStock

Induction motor 230V single-phase mounted with its gearbox 60x60mm

Speed 0.45 to 500 RPM
Torque of 0.49 to 3 N.m

Rotation speed

Type of article

Reference US26W

€14.50 -5%
From €13.78 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

Compact gear motors low power serie MZD are composed of an induction motor and a planetary reduction gear with high precision. They are in a single-phase 230V version, with possibility to vary the speed (variable-frequency drive), and a change of direction. It also exists in a version with brake.

Technical characteristics:

Voltage: 230 V
Frequency: 50 Hz

Advantages:

Low noise
Modular
High efficiency
Light.

Reference motor: 2IK6RGN_C (speed 1500 RPM)

ReferenceRef
gear motorOutput speed
nom. RPM
(min. to max)*Output torque
max N.mRatio

MZD_2M4_006_N007L2GN200K7.5
(0.45 to 6)31:200

MZD_2M4_006_N010L2GN150K10
(0.6 to 8)31:150

MZD_2M4_006_N015L2GN100K15
(0.9 to 12)31:100

MZD_2M4_006_N020L2GN75K20
(1.2 to 16)2.41:75

MZD_2M4_006_N030L2GN50K30
(1.8 to 24)1.61:50

MZD_2M4_006_N050L2GN30K50
(3 to 40)1.11:30

MZD_2M4_006_N060L2GN25K60
(3.6 to 48)0.881:25

MZD_2M4_006_N0100L2GN15K100
(7.2 to 96)0.581:15

MZD_2M4_006_N120L2GN12K5120
(7.2 to 96)0.491:12.5

MZD_2M4_006_N0150L2GN10K150
(15 to 140)0.391:10

MZD_2M4_006_N0300L2GN5K300
(28 to 280)0.191:5

MZD_2M4_006_N0500L2GN3K500
(45 to 470)0.121:3

itemsAssociated itemsitems

US26WInverter ZD6W

2GN10XKGear motor DecimalRatio 1:10

* Use with inverter ZD (US26W)

Adding a gear motor 2GN10XK enables to divide the total speed by 10.

Certificates

certificat technic-achat CE Certificate

Documentation MZD_2M4_006

Technical datasheet MZD_2M4_006 (EN-DE)

Documentation MZD Size 2 (60x60)

General specifications speed adjustable motor MZD (EN)

Catalogue ZD MOTOR

Catalogue ZD Motor - gear motor AC/DC (EN)
