Geared motor ZD - Size 2, 60x60

Range of compact geared motor 2GN for ZD motor

Maximum torque 3N.m
60x60mm
More
Reduction gear ratio MZD
2GN100K
€29.74 -5%
From €28.25 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788

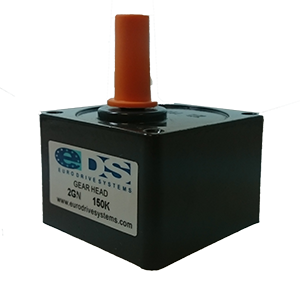

Compact geared motors 2GN for ZD motors.
- Suitable for motors type 2 60x60mm, grooved sprocket.
- Above the 200 ratio, you may pile geared motors 2GN10XK (10 ratio).

Reference
Ratio
Maximum torque
Speed rpm
motor output

3000 rpm
1500 rpm
90 to 1350 rpm
2GN12K5
12.5
3.0N.m
240
120
7.2 to 108
2GN15K
15
3.0N.m
200
100
6 to 90
2GN25K
25
3.0N.m
120
60
3.6 to 54
2GN30K
30
3.0N.m
100
50
3 to 45
2GN50K
50
3.0N.m
60
30
1.8 to 27
2GN75K
75
3.0N.m
40
20
1.2 to 18
 2GN100K
100
3.0N.m
30
15
0.9 to 13.5
2GN120K
120
3.0N.m
25
12.5
0.75 to  11.25
2GN150K
150
3.0N.m
20
10
0.6 to 9
2GN200K
200
3.0N.m
15
7.5
0.45 to 6.75
Stacking geared motor
2GN10XK
10
3.0N.m
