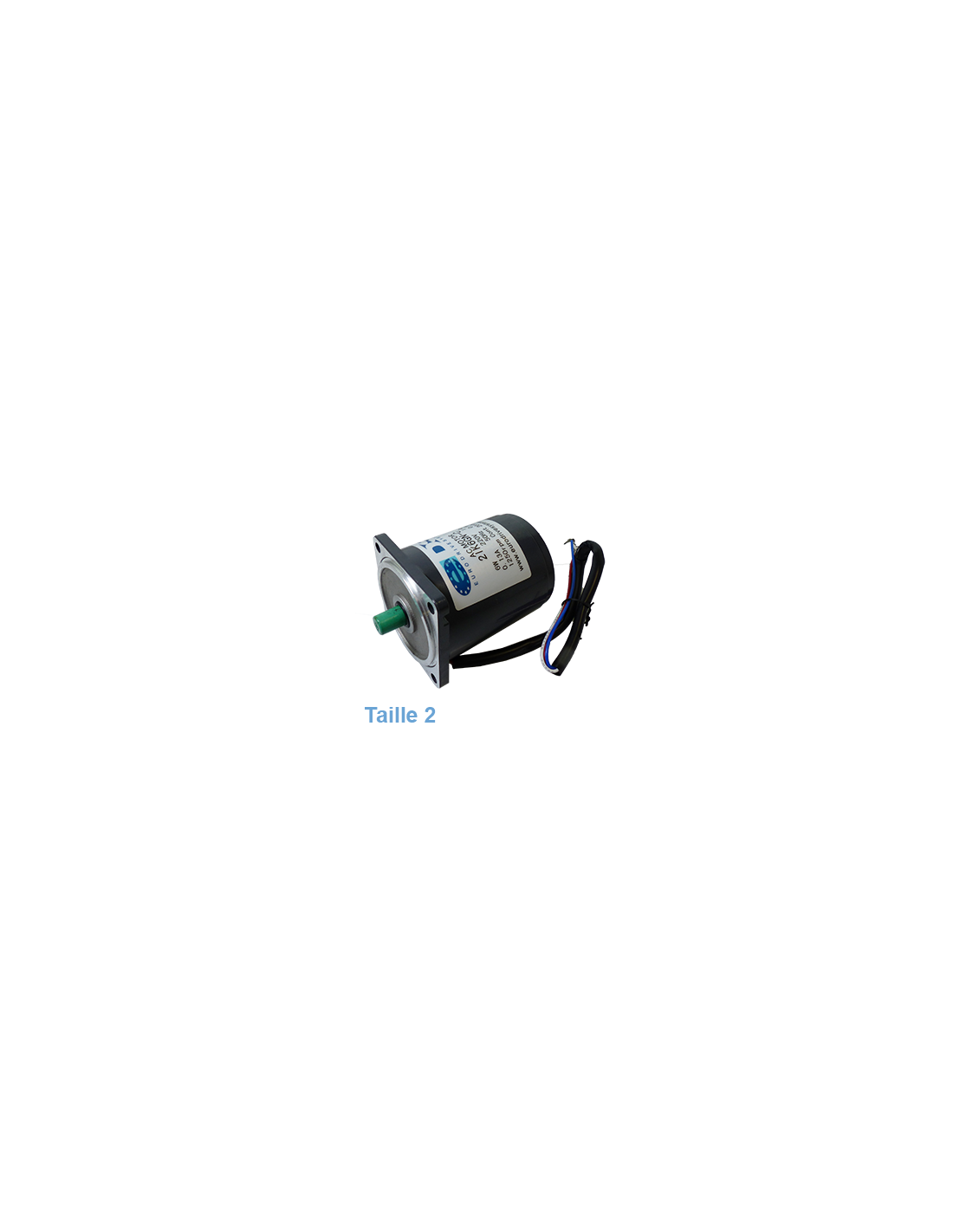

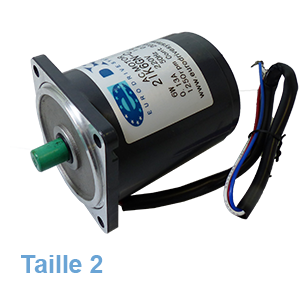

ZD motor - Size 2, 60x60

Range of multivoltage compact motors with several voltages

(three-phase, single-phase 220V, 24V DC, 12V DC, brushless...)
60x60mm.
More
ZD power
Motor type
2IK6GN_C
€35.00 -5%
From €33.25 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Low power ZD compact motors are designed to be used alone (smooth shaft) or with a 2GN geared motor (splined shaft).
- Available in asynchronous (three-phase 220/400, or single-phase 220V), direct current (24V DC or 12V DC), Brushless (230V, 24V).
- Variable speed with encoder return (USW drive), and direction reversal. (RGN version)
- Available with a brake.

Reference
Power
Watt
Supply
voltage
Torque
Nom/start
Current
Speed
rpm
Doc.
Single-phase asynchronous motor 230V
2IK6GN_C
6W
single-phase 230V (0.8µF)
0.04 / 0.05
0.11A
1200
documentation moto réducteur compact


2IK6RGN_C


6W
230V (0.8µF)
with speed control (US2W) (not included)


0.055/0.035


0.15A


90-1400
documentation moto réducteur compact
Direct current motor 12VDC-24VDC
Z2D10_24GN
10W
24V DC
0.032
0.9A
3300
documentation moto réducteur compact
Z2D15_12GN
15W
12V DC
0.048
2A
3200
documentation moto réducteur compact
Z2D15_24GN
15W
24V DC
0.048
1A
3300
documentation moto réducteur compact
Brushless motor
Z2BLD25_24GN
25W
24V DC
0.08
1.3A
3300
documentation moto réducteur compact
CTRL_ZBLDCON_24A25
Brushless motor controller 25W 24V DC
documentation moto réducteur compact



Documentation


documentation technic-achat Technical datasheet
