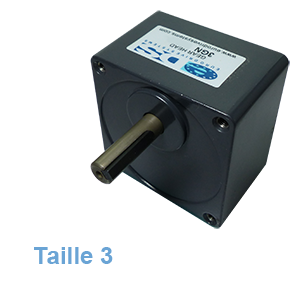

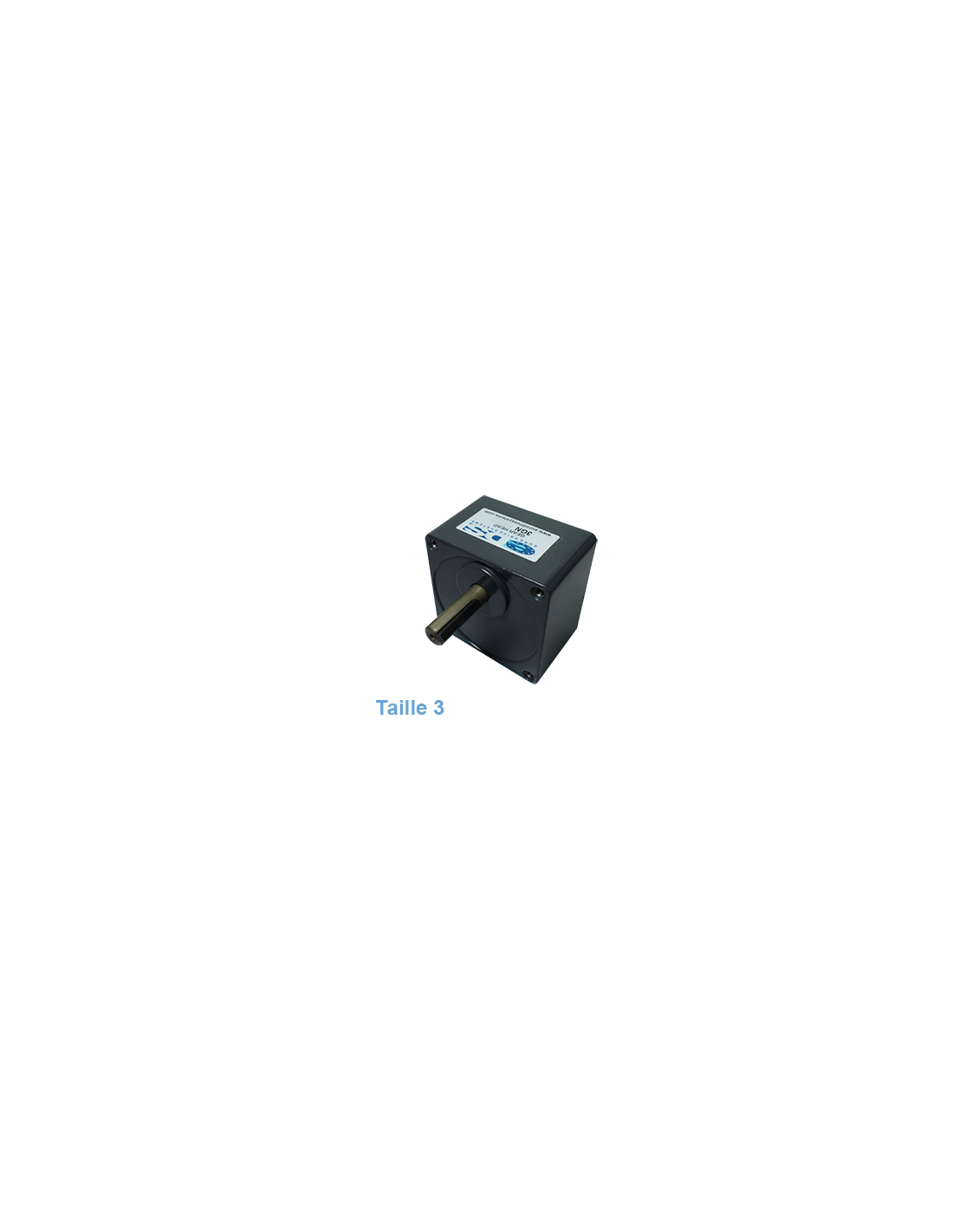

Geared motor ZD - Size 3, 70x70

Range of compact geared motor 3GN for ZD motor

Maximum torque from 0.86 to 5N.m
70x70mm
More
Reduction gear ratio MZD
3GN100K
€27.78 -5%
From €26.39 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Compact geared motors 3GN for ZD motors.
- Suitable for motors type 3 70x70mm, grooved sprocket.
- Above a ratio of 750, you may pile geared motors 3GN10XK (10 ratio).
Maximum torque: 0.86 to 5N.m

Reference
Ratio
Maximum torque
Speed rpm
motor output

3000 rpm
1500 rpm
90 to 1350 rpm
3GN12K5
12.5
0.86N.m
240
120
7.2 to 108
 3GN15K
15
1.5 N.m
200
100
6 to 90
3GN25K
25
1.55N.m
120
60
3.6 to 54
3GN30K
30
1.86 N.m
100
50
3 to 45
3GN50K
50
3.11N.m
60
30
1.8 to 27
3GN75K
75
4.22N.m
40
20
1.2 to 18
3GN100K
100
5N.m
30
15
0.9 to 13.5
3GN150K
150
5N.m
20
10
0.6 to 9
3GN200K
200
5N.m
15
7.5
0.45 to 6.75
3GN300K
300
5N.m
10
5
0.3 to 4.5
Stacking geared motor 3GN10XK
10
5N.m
