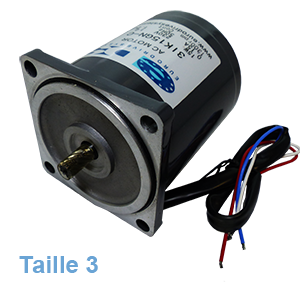

Motor ZD - Size 3, 70x70

Range of compact multi voltages motor

(three-phase, single-phase 220V, 24V DC, 12V DC, brushless...)
70x70mm
More
ZD power
Motor type
3IK15GN_C
€36.52 -5%
From €34.69 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Low power ZD compact motors are designed to be used alone (smooth shaft) or with a geared motor 3GN (splined shaft).
- Available in asynchronous (three-phase 220/400, or single-phase 220V), direct current (24V DC or 12V DC), Brushless (230V, 24V).
- Variable speed with encoder output (USW drive), and direction reversal. (RGN version)
- Available with brake.

Reference
Power
in Watt
Supply
voltage
Torque
Nom/start
Current
Speed
rpm
Doc.
Single-phase asynchronous motor 230V
3IK15GN_C
15W
single-phase 230V (0.8µF)
0.125/0.09
0.20A
1200
documentation moto réducteur compact

3IK15RGN_C

15W
230V (0.8µF)
with speed control (US2W)
0.12Nm to 1200rpm
0.035Nm to 90rpm

0.26A

90-1400

documentation moto réducteur compact
Three-phase asynchronous motor
3IK15GN_UT
15W
Three-phase 220V/380V
0.22N.m
0.14A
1200
Direct current motor 12V DC-24V DC
Z3D25_12GN
25W
12V DC
0.08N.m
3.5A
3000
documentation moto réducteur compact
Z3D25_24GN
25W
24V DC
0.087N.m
1.6A
2800
documentation moto réducteur compact
ZD motor bracket
ZD3M5








Documentation


documentation technic-achat Technical datasheet

moteur pas à pas technic-achat
