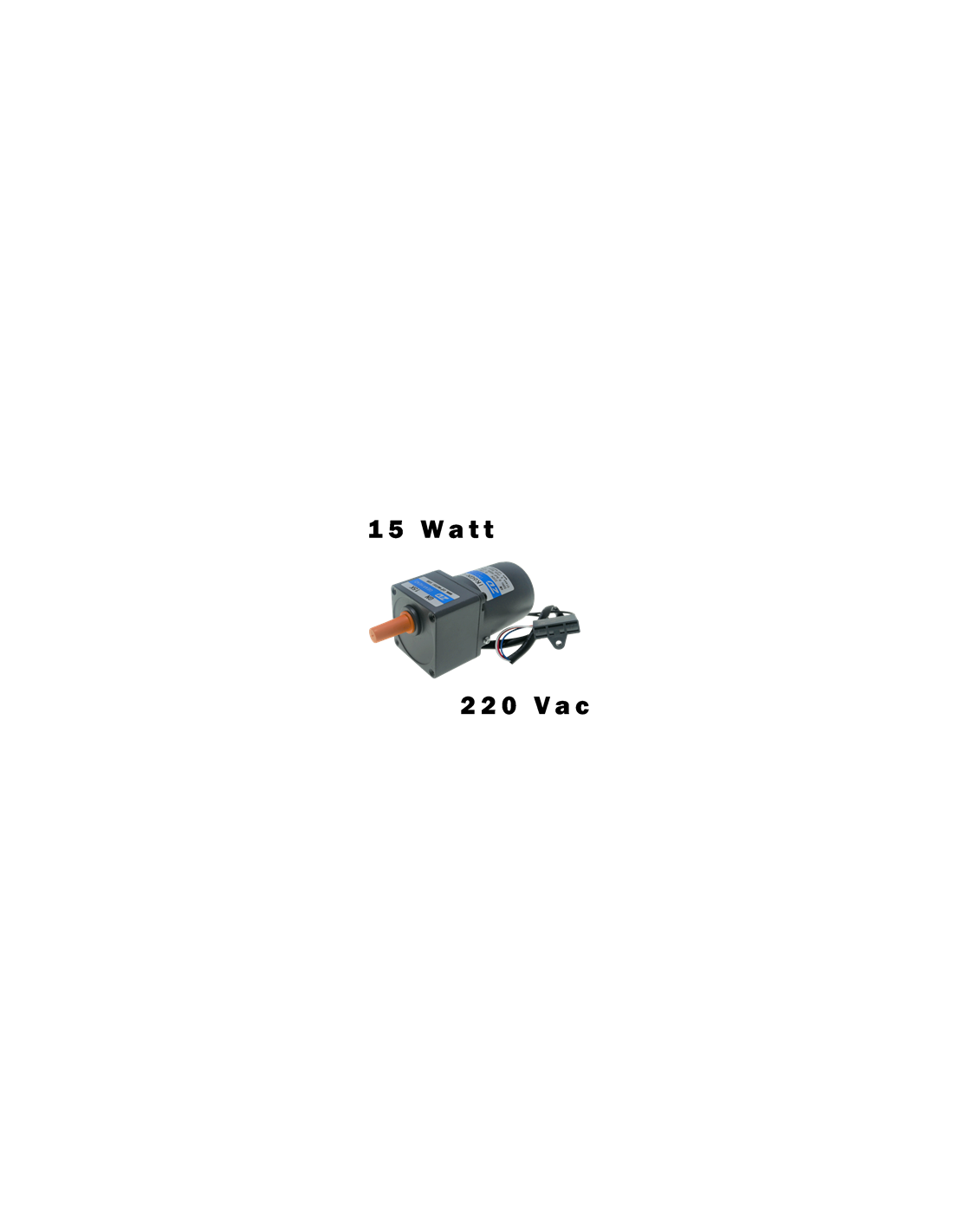

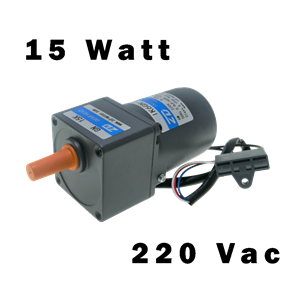

Single-phase geared motor compact type 3 - 15 W

Geared motor compact type 3 single 4P 15w Speed= 5 rpm

More
Rotation speed
MZD_3M4F_015_N007L
€65.74 -5%
From €62.45 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Low power compact geared motors MZD series are composed of an induction motor and a high precision planetary reduction gear. They are 230V single-phase and require a capacitor, it is possible to reverse the way. It is also available with a brake (optional).

Technical characteristics:
- Voltage: 230 V
- Frequency: 50 Hz

Advantages:
Low oise, Modular, High efficiency, Light.
Motor reference: 3IK15GN_C

Reference
Geared unit
reference
Output speed
nom. rpm
Output torque
 max N.mRatio
MZD_3M4F_015_N007L3GN200K7.5
51:200
MZD_3M4F_015_N010L3GN150K10
51:150
MZD_3M4F_015_N015L3GN100K15
51:100
MZD_3M4F_015_N020L3GN75K20
51:75
MZD_3M4F_015_N030L3GN50K30
4.11:50
MZD_3M4F_015_N050L3GN30K50
2.71:30
MZD_3M4F_015_N60L3GN25K60
2.31:25
MZD_3M4F_015_N100L3GN15K100
1.51:15
MZD_3M4F_015_N120L3GN12K5120
1.31:12.5
MZD_3M4F_015_N150L3GN10K150
0.971:10
MZD_3M4F_015_N300L3GN5K300
0.511:5
MZD_3M4F_015_N500L3GN3K500
0.301:3
Related products
3GN10XKDecimal geared unitRatio 1:10
ZD3M5Motor supportMounting brackets for MZD 3 motor

Documentation MZD_3M4F_015

 Technical datasheet MZD_3M4F_015 (FR)
 Technical datasheet MZD_3M4F_015(EN-DE)

Documentation MZD Size 3 (70x70)

 Technical datasheet MZD T3 (FR)
 General specifications Compact geared motor MZD (EN)

Catalogue ZD MOTOR

 Catalogue ZD Motor - Geared motor AC/DC (EN)
