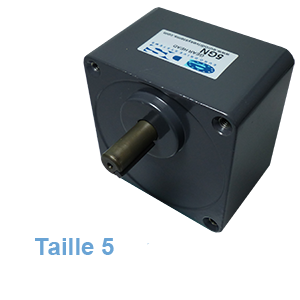

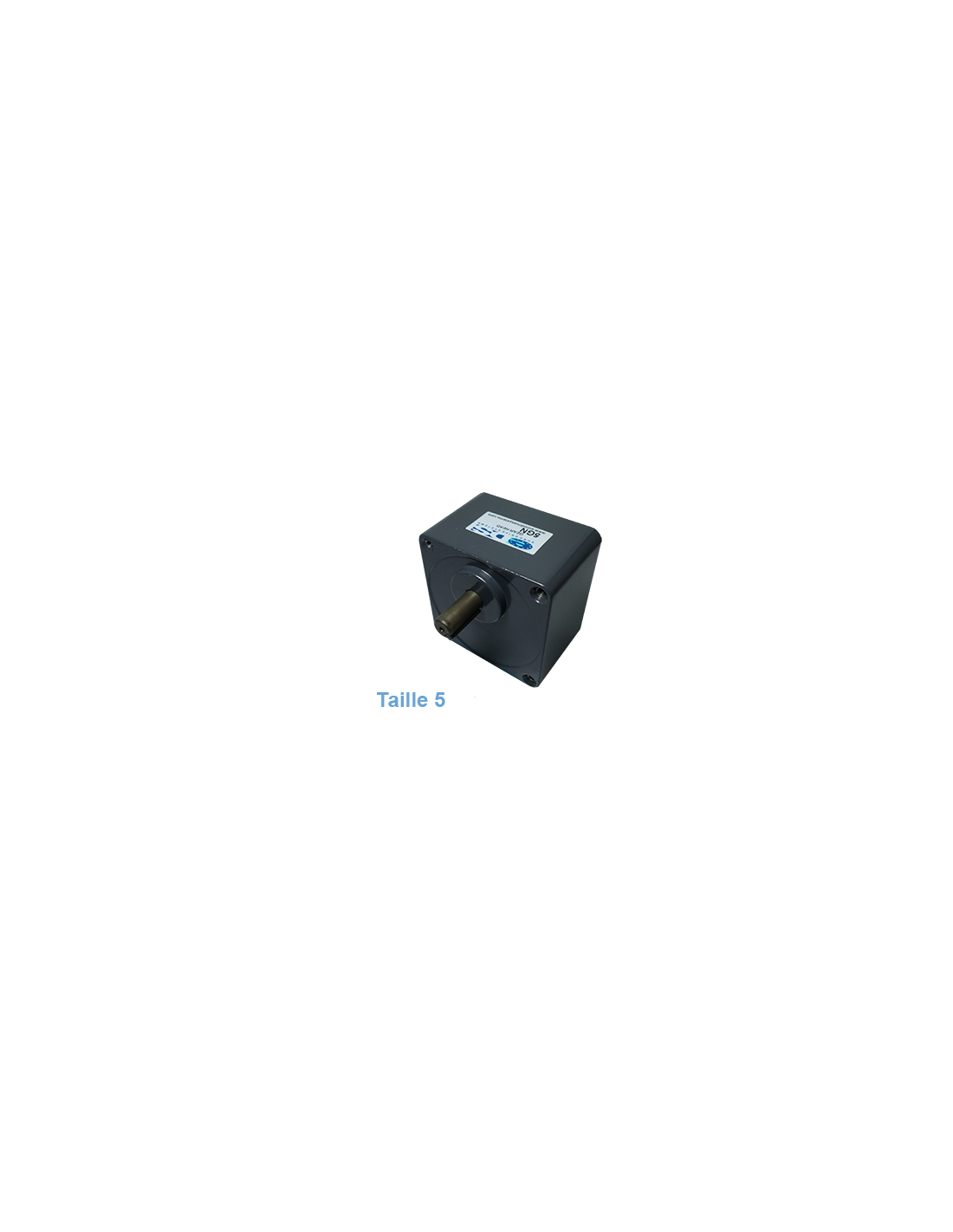

Geared motor ZD - Size 5, 90x90

Range of compact geared motor 5GN for ZD motor

Maximum torque 10N.m
90x90mm
More
Reduction gear ratio MZD
5GN100K
€46.48 -5%
From €44.16 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Compact geared motors 5GN for ZD motors.
- Suitable for motors type 5 90x90mm, grooved sprocket.
- Above ratio of 750, you may pile the geared motors 5GN10XK (10 ratio).

Maximum torque: 3.2 to 10N.m

Reference
Ratio
Maximum torque
Speed rpm
motor output
3000rpm
1500rpm
90 to 1350rpm
5GN7K5
7.5
10N.m
400
200
12 to 180
5GN10K
10
10N.m
300
150
9 to 135
5GN25K
25
10N.m
120
60
3.6 to 54
5GN30K
30
10N.m
100
50
3 to 45
5GN36K
36
10N.m
83
42
2.5 to 37.5
5GN50K
50
10N.m
60
30
1.8 to 27
5GN75K
75
10N.m
40
20
1.2 to 18
5GN100K
100
10N.m
30
15
0.9 to 13.5
5GN150K
150
10N.m
20
10
0.6 to 9
5GN200K
200
10N.m
15
7.5
0.45 to 6.75
5GN300K
300
10N.m
10
5
0.3 to 4.5
5GN750K
750
10N.m
4
2
0.12 to 1.8
Stackable geared motor
5GN10XK
10
10N.m
