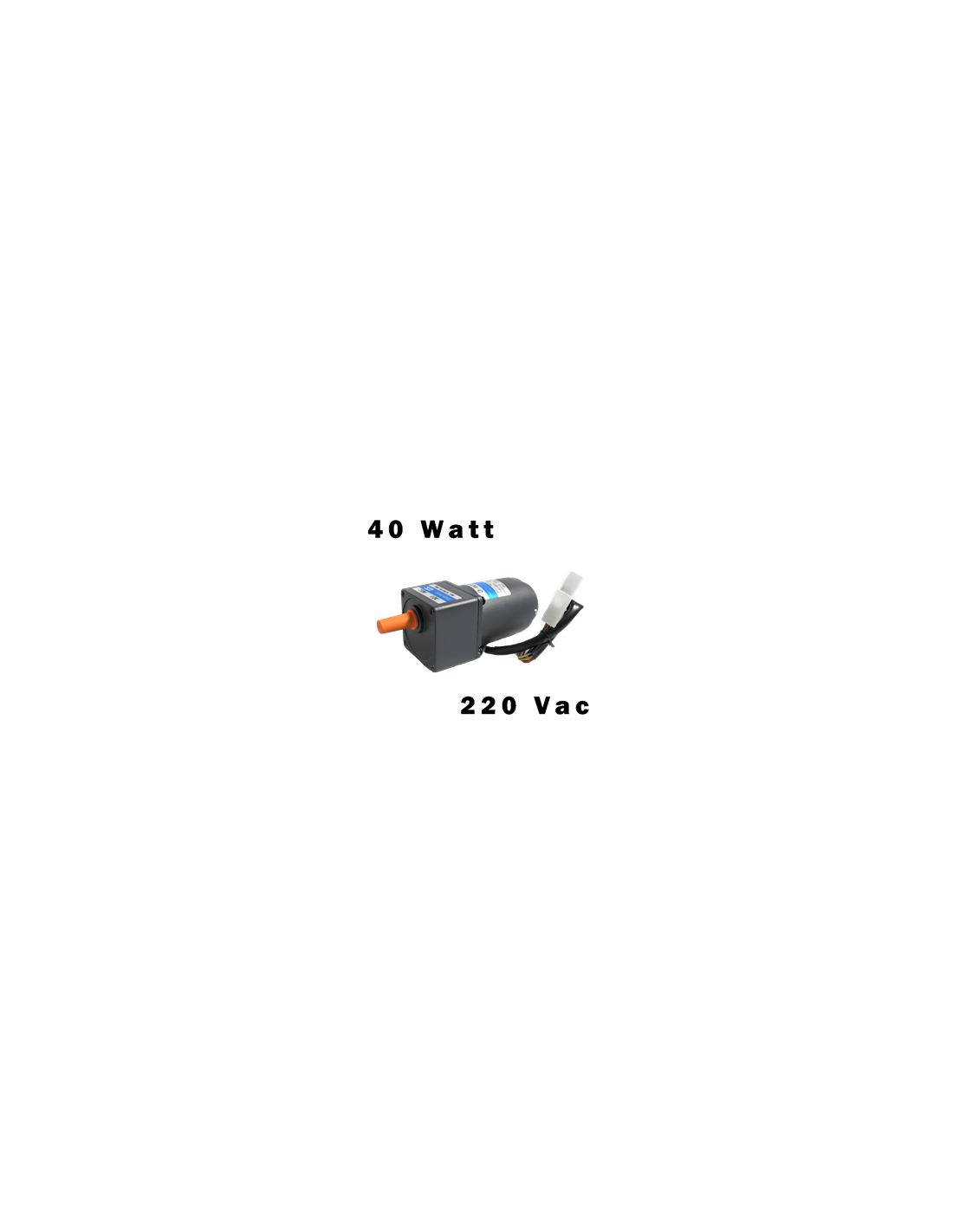

Compact gear motor type 5 - 40 W

Name: Compact gear motor type 5 - 40 W
Brand: ZD MOTOR
SKU: MZD_5M4_040_XXX
Price: 152.59 EUR
Availability: InStock

Induction motor single-phase 230V mounted with its gear box 90x90mm

Speeds from 2 to 200 RPM
Torque from 1.9 to 10 N.m

Rotation speed

Type of article

Reference MZD_5M4_040_N010L

Last items in stock

€160.62 -5%
€152.59 Excl. tax

Compact gear motors low power serie MZD are composed of an induction motor and a planetary gearbox with high precision.
They are in a version single-phase 220 VAC, with possibility to change the speed (variable frequency drive), and change of direction. It also exists in version with brake.

Technical characteristics:
Voltage: 220 Vac
Frequency: 50 Hz

Advantages:
Low noise, Modular, High efficiency, Light.

Reference motor: 5IK40RGN_C (speed 1500 RPM)

ReferenceRef
gearboxOutput speed
nom. RPM
(min. to max)*Output torque
max N.mRatio

MZD_5M4_040_N007L5GN200K7.5
(0.45 to 6)101:200

MZD_5M4_040_N010L5GN150K10
(0.6 to 8)101:150

MZD_5M4_040_N015L5GN100K15
(0.9 to 12)101:100

MZD_5M4_040_N020L5GN75K20
(1.2 to 16)101:75

MZD_5M4_040_N030L5GN50K30
(1.8 to 24)101:50

MZD_5M4_040_N050L5GN30K50
(3 to 40)6.91:30

MZD_5M4_040_N060L5GN25K60
(3.6 to 48)5.71:25

MZD_5M4_040_N100L5GN15K100
(7.2 to 96)3.81:15

MZD_5M4_040_N120L5GN12K5120
(10 to 115)3.21:12.5

MZD_5M4_040_N150L5GN10K150
(15 to 140)2.381:10

MZD_5M4_040_N300L5GN5K300
(28 to 280)1.501:5

MZD_5M4_040_N500L5GN3K500
(45 to 470)0.771:3

Associated items

US540WVariable frequency drive ZD40W

5GN10XKDecimalgearboxRatio 1:10

ZD5M5Support motorMounting brackets for motor MZD 5

*Use with variable frequency drive ZD ( US540W)

Adding a gear box 5GN10XK enables to divide the total speed by 10.

Documentation

Technical document (FR)
Mounting accessories (FR)

Documentation MZD_5M4_040

Technical datasheet MZD_5M4_040 (EN-DE)

Documentation MZD Size 5 (90x90)

General specifications compact gear motor MZD (EN)

Catalogue ZD MOTOR

Catalogue ZD Motor - gear motor AC/DC (EN)

Softwares & 3D

fichier 3D technic-achat Step File

Online support

aide en ligne Technic-Achat Choosing a gear motor

Videos

MZD 5 GN 040

Combinations	Rotation speed	Type of article	Reference	Stock	Price	Add to cart
Rotation speed : 7.5 RPM Type of article : Gear motor Reference : MZD_5M4_040_N007L Stock : 1	7.5 RPM	Gear motor	MZD_5M4_040_N007L	Available now Stock : 1	€120.80 Tax excl. €114.76 Tax excl. - 5%	€120.80 Tax excl. €114.76 Tax excl. (- 5%)
Rotation speed : 10 RPM Type of article : Gear motor Reference : MZD_5M4_040_N010L Stock : 3	10 RPM	Gear motor	MZD_5M4_040_N010L	Available now Stock : 3	€160.62 Tax excl. €152.59 Tax excl. - 5%	€160.62 Tax excl. €152.59 Tax excl. (- 5%)
Rotation speed : 15 RPM Type of article : Gear motor Reference : MZD_5M4_040_N015L Stock : 1	15 RPM	Gear motor	MZD_5M4_040_N015L	Available now Stock : 1	€120.80 Tax excl. €114.76 Tax excl. - 5%	€120.80 Tax excl. €114.76 Tax excl. (- 5%)
Rotation speed : 20 RPM Type of article : Gear motor Reference : MZD_5M4_040_N020L Stock : 2	20 RPM	Gear motor	MZD_5M4_040_N020L	Available now Stock : 2	€120.80 Tax excl. €114.76 Tax excl. - 5%	€120.80 Tax excl. €114.76 Tax excl. (- 5%)
Rotation speed : 30 RPM Type of article : Gear motor Reference : MZD_5M4_040_N030L Stock : 0	30 RPM	Gear motor	MZD_5M4_040_N030L	Available later	€135.64 Tax excl. €128.86 Tax excl. - 5%	€135.64 Tax excl. €128.86 Tax excl. (- 5%)
Rotation speed : 50 RPM Type of article : Gear motor Reference : MZD_5M4_040_N050L Stock : 0	50 RPM	Gear motor	MZD_5M4_040_N050L	Available later	€141.92 Tax excl. €134.82 Tax excl. - 5%	€141.92 Tax excl. €134.82 Tax excl. (- 5%)
Rotation speed : 60 RPM Type of article : Gear motor Reference : MZD_5M4_040_N060L Stock : 3	60 RPM	Gear motor	MZD_5M4_040_N060L	Available now Stock : 3	€125.82 Tax excl. €119.53 Tax excl. - 5%	€125.82 Tax excl. €119.53 Tax excl. (- 5%)
Rotation speed : 100 RPM Type of article : Gear motor Reference : MZD_5M4_040_N100L Stock : 5	100 RPM	Gear motor	MZD_5M4_040_N100L	Available now Stock : 5	€159.28 Tax excl. €151.32 Tax excl. - 5%	€159.28 Tax excl. €151.32 Tax excl. (- 5%)
Rotation speed : 120 RPM Type of article : Gear motor Reference : MZD_5M4_040_N120L Stock : 1	120 RPM	Gear motor	MZD_5M4_040_N120L	Available now Stock : 1	€137.16 Tax excl. €130.30 Tax excl. - 5%	€137.16 Tax excl. €130.30 Tax excl. (- 5%)
Rotation speed : 150 RPM Type of article : Gear motor Reference : MZD_5M4_040_N150L Stock : 1	150 RPM	Gear motor	MZD_5M4_040_N150L	Available now Stock : 1	€107.32 Tax excl. €101.95 Tax excl. - 5%	€107.32 Tax excl. €101.95 Tax excl. (- 5%)
Rotation speed : 200 RPM Type of article : Gear motor Reference : MZD_5M4_040_N200L Stock : 0	200 RPM	Gear motor	MZD_5M4_040_N200L	Available later	€164.52 Tax excl. €156.29 Tax excl. - 5%	€164.52 Tax excl. €156.29 Tax excl. (- 5%)
Rotation speed : 300 RPM Type of article : Gear motor Reference : MZD_5M4_040_N300L Stock : 2	300 RPM	Gear motor	MZD_5M4_040_N300L	Available now Stock : 2	€114.26 Tax excl. €108.55 Tax excl. - 5%	€114.26 Tax excl. €108.55 Tax excl. (- 5%)
Rotation speed : 500 RPM Type of article : Gear motor Reference : MZD_5M4_040_N500L Stock : 3	500 RPM	Gear motor	MZD_5M4_040_N500L	Available now Stock : 3	€106.94 Tax excl. €101.59 Tax excl. - 5%	€106.94 Tax excl. €101.59 Tax excl. (- 5%)
Rotation speed : - Type of article : Variable-frequency drive Reference : US540W Stock : 3	-	Variable-frequency drive	US540W	Available now Stock : 3	€20.68 Tax excl. €19.65 Tax excl. - 5%	€20.68 Tax excl. €19.65 Tax excl. (- 5%)
