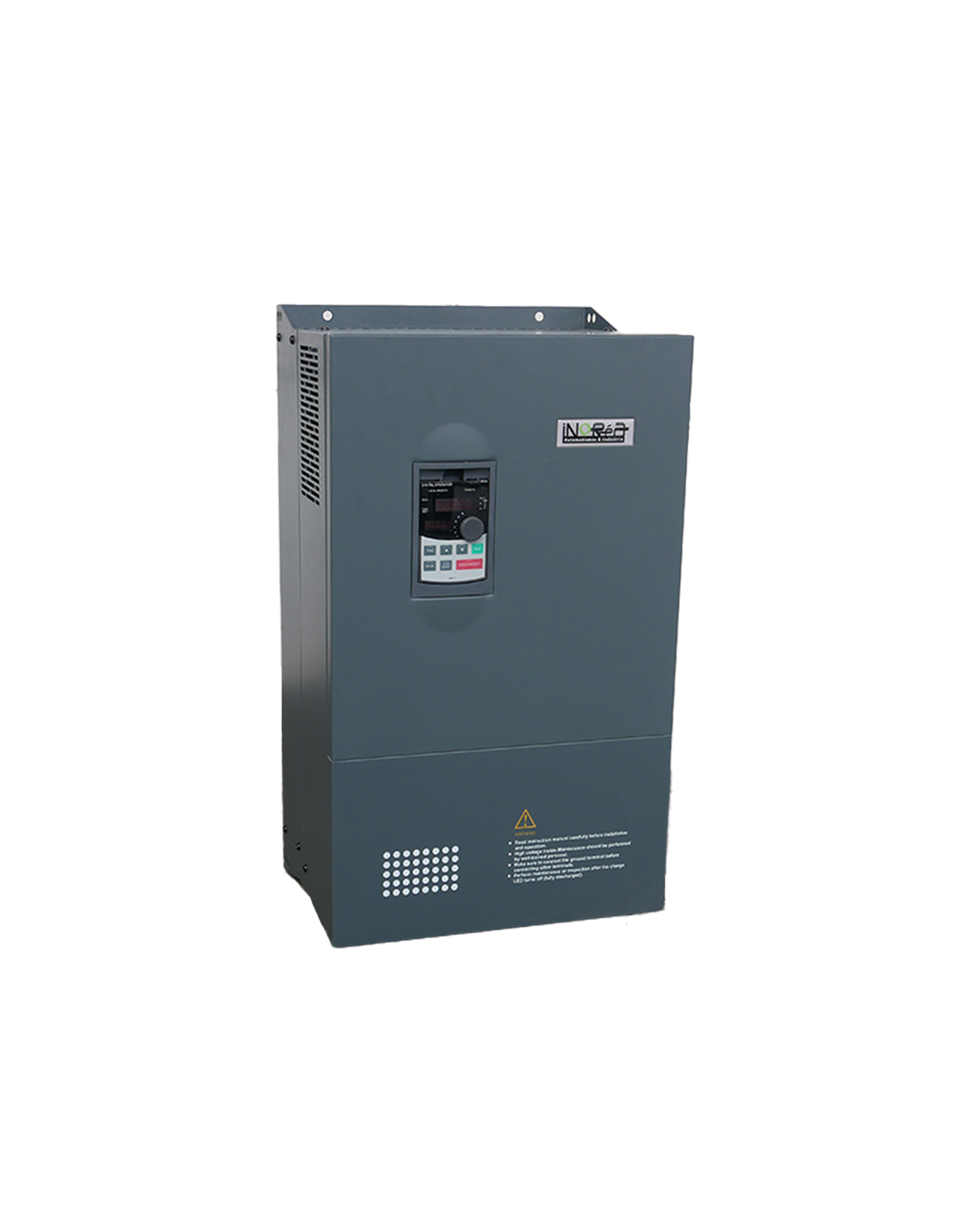

3-phase variable-frequency drive 400V VFR092

Power from 11 Kw to 160Kw
2-year warranty*

Power kW

Reference VFR-092T4-15K0

Pre-order

€927.65 -5%
€881.27 Excl. tax

New model: Variable-frequency drive

Advantages:
Perfect vector control without sensor
Low-frequency torque at 0.25 Hz
Protection against short circuit
Motor setting by auto-tuning
Control of the blower activation
Supply: 380-415V (±15%), 50/60Hz (±5%)
V/F (automatic slip compensation); or open-loop vector control or closed-loop vector control
Output frequency 0.00»300.00Hz in vector control, 0.00»3200.00Hz in constant torque application U/F (stability ±0.50 Hz)
Starting torque 180% to 0.5 Hz
Overload capacity: 150% during 1 min, 200% during 2 s
6 TOR entries (0-24V), 3 analogue inputs (0-10V, 4-20mA), 2 transistor outputs, 1 relay output, 2 analogue outputs
Integrated braking transistor and direct current injection
Keyboard monitoring, terminal block control, MODBUS communication; (RUN, STOP, AV, AR, frequency, emergency stop...)
Operation in 7 speed range, PID....

*The warranty only applies if the inverter is used in an IP55 electrical cabinet.

Reference

Power

Dimension (mm)
Height*Width*Depth

Weight
Kg

VFR-092T4-11K0

11 KW

25 A

360/220/210
9L1

VFR-092T4-15K0

15 KW

32 A

360/220/225
9L1

VFR-092T4-18K0

18,5 KW

38 A

435/275/258
9L2

15.5

VFR-092T4-22K0

22 KW

45 A

435/275/258
9L2

15.5

VFR-092T4-30K0

30 KW

60 A

480/296/262
9L3

23.5

VFR-092T4-37K0

37 KW

75 A

480/296/262
9L3

23.5

VFR-092T4-45K0

45 KW

90 A

660/364/295
9L4

VFR-092T4-55K0

55 KW

110 A

660/364/295
9L4

VFR-092T4-75K0

75 KW

150 A

660/364/295
9L4

VFR-092T4-93K0

93 KW

170 A

710/453/295
9L5

VFR-092T4-110K0

110 KW

210 A

710/453/295
9L5

VFR-092T4-132K0

132 KW

250 A

910/480/335
9L6

193

VFR-092T4-160K0

160 KW

300 A

910/480/335
9L6

193

Documentation

documentation technic-achat Quick start guide
Complete instruction
Wiring plan
Multi-speed control
Application examples

Online support

aide en ligne Technic-Achat Different monitoring modes of inverters
Braking and resistance on an inverter
How to install an inverter on a combination woodworking machine?
How to protect your frequency inverter?
Lathe tutorial
How to monitor in a multi-speed way a frequency inverter?
How to choose a single-phase or 3-phase inverter?
aide en ligne Technic-Achat How to connect a remote control on an inverter?

Videos

Combinations	Power kW	Reference	Stock	Price	Add to cart
Power kW : 11 kW Reference : VFR-092T4-11K0 Stock : 0	11 kW	VFR-092T4-11K0	Available later	€699.95 Tax excl. €664.95 Tax excl. - 5%	€699.95 Tax excl. €664.95 Tax excl. (- 5%)
Power kW : 15 kW Reference : VFR-092T4-15K0 Stock : 0	15 kW	VFR-092T4-15K0	Available later	€927.65 Tax excl. €881.27 Tax excl. - 5%	€927.65 Tax excl. €881.27 Tax excl. (- 5%)
Power kW : 18 kW Reference : VFR-092T4-18K0 Stock : 0	18 kW	VFR-092T4-18K0	Available later	€1,059.08 Tax excl. €1,006.13 Tax excl. - 5%	€1,059.08 Tax excl. €1,006.13 Tax excl. (- 5%)
Power kW : 22 kW Reference : VFR-092T4-22K0 Stock : 0	22 kW	VFR-092T4-22K0	Available later	€1,535.38 Tax excl. €1,458.61 Tax excl. - 5%	€1,535.38 Tax excl. €1,458.61 Tax excl. (- 5%)
Power kW : 30 kW Reference : VFR-092T4-30K0 Stock : 0	30 kW	VFR-092T4-30K0	Available later	€1,486.30 Tax excl. €1,411.99 Tax excl. - 5%	€1,486.30 Tax excl. €1,411.99 Tax excl. (- 5%)
Power kW : 37 kW Reference : VFR-092T4-37K0 Stock : 0	37 kW	VFR-092T4-37K0	Available later	€1,945.33 Tax excl. €1,848.06 Tax excl. - 5%	€1,945.33 Tax excl. €1,848.06 Tax excl. (- 5%)
Power kW : 45 kW Reference : VFR-092T4-45K0 Stock : 0	45 kW	VFR-092T4-45K0	Available later	€2,345.60 Tax excl. €2,228.32 Tax excl. - 5%	€2,345.60 Tax excl. €2,228.32 Tax excl. (- 5%)
Power kW : 55 kW Reference : VFR-092T4-55K0 Stock : 0	55 kW	VFR-092T4-55K0	Available later	€2,879.21 Tax excl. €2,735.25 Tax excl. - 5%	€2,879.21 Tax excl. €2,735.25 Tax excl. (- 5%)
Power kW : 75 kW Reference : VFR-092T4-75K0 Stock : 0	75 kW	VFR-092T4-75K0	Available later	€3,503.18 Tax excl. €3,328.02 Tax excl. - 5%	€3,503.18 Tax excl. €3,328.02 Tax excl. (- 5%)
Power kW : 93 kW Reference : VFR-092T4-93K0 Stock : 0	93 kW	VFR-092T4-93K0	Available later	€3,609.34 Tax excl. €3,428.87 Tax excl. - 5%	€3,609.34 Tax excl. €3,428.87 Tax excl. (- 5%)
Power kW : 110 kW Reference : VFR-092T4-110K0 Stock : 0	110 kW	VFR-092T4-110K0	Available later	€4,263.60 Tax excl. €4,050.42 Tax excl. - 5%	€4,263.60 Tax excl. €4,050.42 Tax excl. (- 5%)
Power kW : 132 kW Reference : VFR-092T4-132K0 Stock : 0	132 kW	VFR-092T4-132K0	Available later	€5,316.90 Tax excl. €5,051.06 Tax excl. - 5%	€5,316.90 Tax excl. €5,051.06 Tax excl. (- 5%)
Power kW : 160 kW Reference : VFR-092T4-160K0 Stock : 0	160 kW	VFR-092T4-160K0	Available later	€5,971.87 Tax excl. €5,673.28 Tax excl. - 5%	€5,971.87 Tax excl. €5,673.28 Tax excl. (- 5%)
