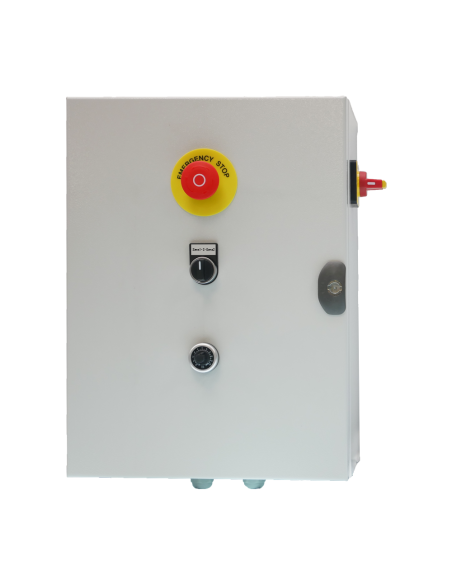

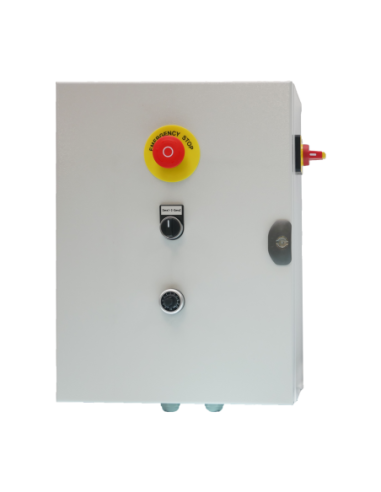

Single-phase variable frequency drive enclosure 2 directions
Suited for a VFR050 VFD, this enclosure is made for three-phase (220/380V) motors with a single-phase 220V power supply. The VFD is mounted in an IP55 enclosure.
VFRIP5_12 applications: pumping / backflowing, carpets, conveyors, drills, lathes,etc.
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Enclosure includes:
- Electrical cabinet
- VFD VFR050
- Lateral isolating switch
- Emergency stop
- Potentiometer for adjusting the speed
- Magnetothermal protection (circuit breaker size adapted to the VFD)
- Switch with 3 holding positions: Way 1/Stop/Way 2
Technical characteristics:
- Voltage: Single-phase 230V (±10%)
- Input frequency: 50 - 60 Hz
- Connection: Supply terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
- Plastic enclosure dimensions (cm) : 50*40*24
- Metal enclosure dimensions (cm) : 50*35*30
Documentation VFRIP5M2_12_XX
Documentation VFR_050
Quick start guide (FR) Instructions (EN) Wiring diagram
