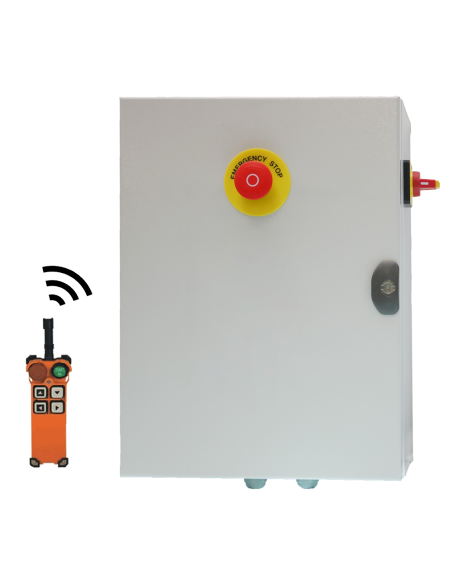

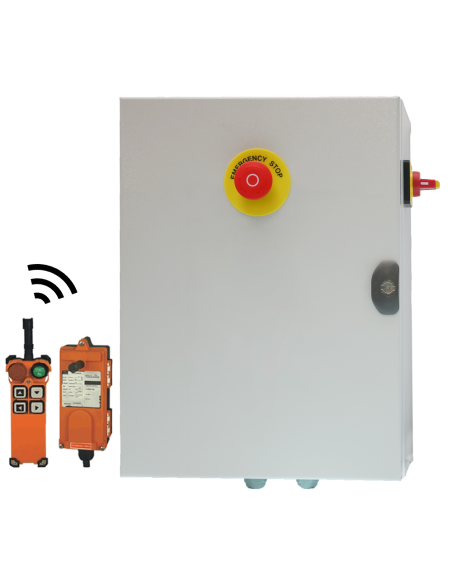

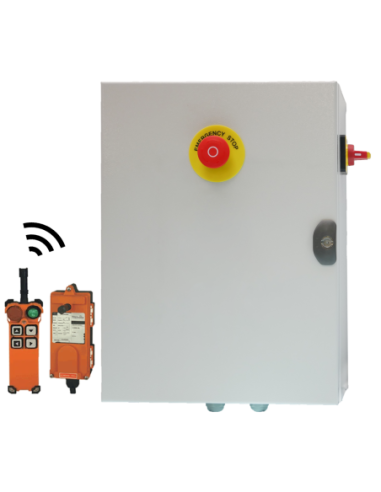

Three-phase variable frequency drive enclosure remote control
Suited for a VFR050 VFD, this enclosure is made for three-phase motors with a three-phase 380V power supply. The VFD is mounted in an IP55 enclosure. Motor remote control included (no need to be close to the enclosure).
VFRIP5_EM application: pump, conveyors, ventilation, ...
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Enclosure includes:
- Electrical cabinet
- VFD VFR050
- Lateral isolating switch
- Emergency stop
- Magnetothermal protection (circuit breaker size adapted to the VFD)
- Receiver for the remote control
2 operating modes:
- Mode 1: 2 rotation directions and variable speed with pulse. Enables the VFD to be started remotely in the two ways and the speed to be adjusted with pulse
- Mode 2: 1 rotation direction and 3 preset speeds. Enables the VFD to be started in one way and to be driven with 3 set speeds
Technical characteristics :
- Voltage: Three-phase 400V (±10%)
- Input frequency: 50 - 60 Hz
- Connection: Supply terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
- Plastic enclosure dimensions (cm) : 50*40*24
- Metal enclosure dimensions (cm) : 50*35*30
Documentation VFRIP5T4_EM_XX
Documentation VFR_050
Quick start guide (FR) Instructions (EN) Wiring diagram
