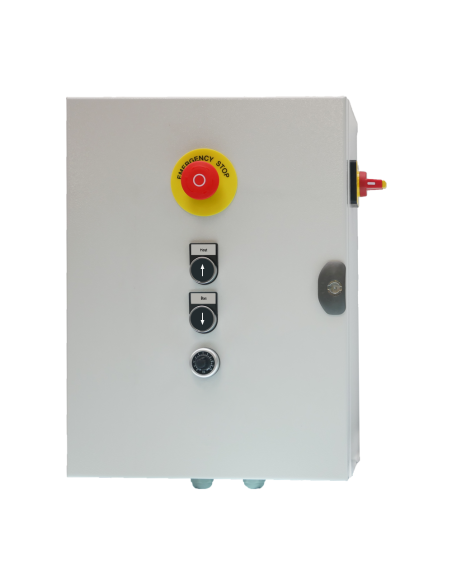

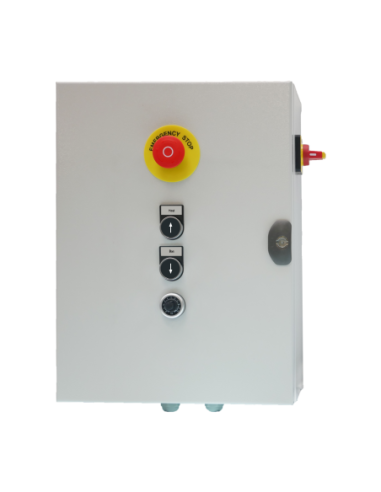

Three-phase variable frequency drive enclosure UP/DOWN
Suited for a VFR050 VFD, this enclosure is made for three-phase motors with a three-phase 380V power supply. The VFD is mounted in an IP55 enclosure.
VFRIP5_HB applications: Double column lift, sectional door, hoist/winch, etc.
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Enclosure includes:
- Electrical cabinet
- VFD VFR050
- Lateral isolating switch
- Emergency stop
- Potentiometer for adjusting the speed
- Magnetothermal protection (circuit breaker size adapted to the VFD)
- 2 arrow butttons (Up/down)
- Stop button
Technical characteristics:
- Voltage: Three-phase 400V (±10%)
- Input frequency: 50 - 60Hz
- Connection: Supply terminal block
- Protection: IP55
- Operating temperature: -5°C to +40°C
- Plastic enclosure dimensions (cm) : 50*40*24
- Metal enclosure dimensions (cm) : 50*35*30
Documentation VFRIP5T4_HB_XX
Documentation VFR_050
Quick start guide (FR) Instructions (EN) Wiring diagram
