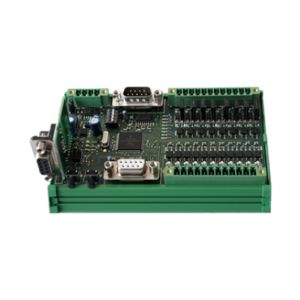

CPU NG Quark

CNC CPU. Basic model used for low level applications, can control up to 4 axes.

More
Select your axis drive
NGQ_L4_0C0
€260.00 -5%
From €247.00 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



The NG QUARK is a CNC CPU basic model. It can control up to 4 axes in Can Open (brushless motor) or 3 axes PULSE / DIR (stepper motor) interpolation mode.
You can program our range of axes card with the free VTB2 software that you can download below.
They can be connected to the CNC open source of our software: IsoNs.

Characteristics:
  • 1 CanOpen port
  • 11 Digital inpputs PNP 24 VDC
  • 8 Digital outputs PNP 24VCC (1A)
  • 2 RS232 (RS485 upon request) with Modbus RTU
  • other options available upon request
Reference
Characteristics
NGQ_L4_0C0
 4 Channels PULSE / DIR, analogue input 10V
NGQ_D_0D0
5 Analogue inputs 4-20mA
NGQ_C_0C0
 5 Analogue inputs 0-10V
NGQ_A_0A0
 5 Analogue inputs 0-5V
