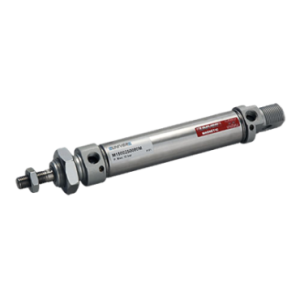

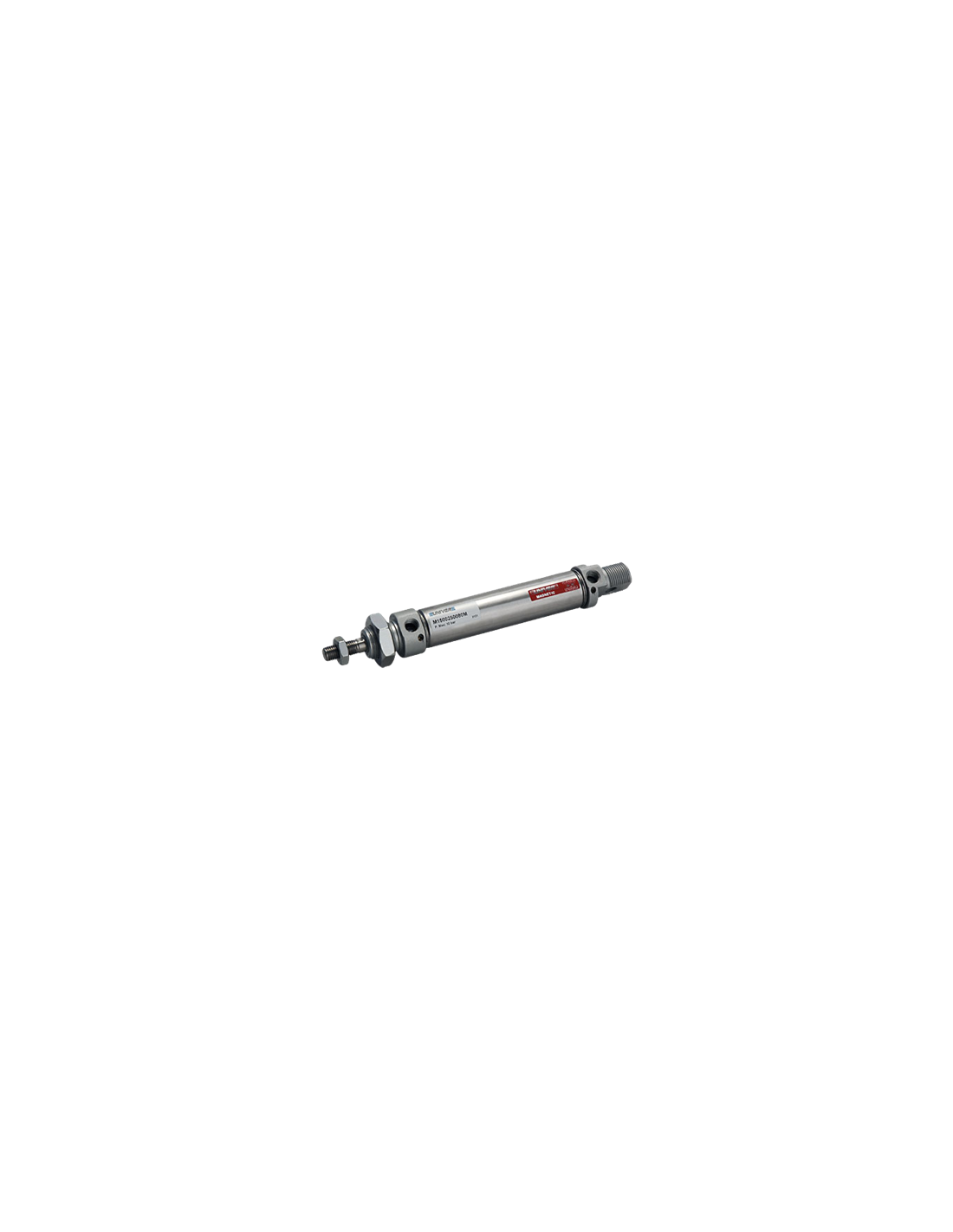

Micro pneumatic cylinder ISO 6432 double acting Ø12 - Ø16

Diameter from 12 to 16mm
Stroke from 10 to 200mm

→ Product unavailable? Request a quote.

More
Stroke of the cylinder
Diameter of the rod
PVR643212010D
€43.94 -5%
From €41.74 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Cylinder ISO 6432 (CETOP Standard) Ø 12-16mm, double acting.

No return or exchange.


Inside diameter
(mm)
Outside diameter
(mm)
Rod diameter
(mm)
Pushing force
(Kg)
Pulling force
(Kg)
Standard stroke
(mm)
Connector diameter
Reference
3D File

Ø 12mm

13,3
M6 x 1
5
3,8
10, 20, 30, 50, 80, 100, 120, 160, 200
M5 x 0,8
PVR643212XXXD
Dimensions moteur alternatif 3000 tr

Ø 16mm

17,3
M6 x 1
9
8,7
10, 20, 30, 50, 80, 100, 120, 160, 200
M5 x 0,8
PVR643216XXXD
Dimensions moteur alternatif 3000 tr
Accessories
Right-hand flanges
Schéma flasques droit
PVR6432FD_1216
(MF-12012)
Bracket
Schéma équerre
PVR6432EE_1216
(MF-13012)
Back clevis
Schéma chape arrière
PVR6432CB_1216
(MF-21012)
Front clevis
Schéma chape avant
PVR6432CA_1216
(MF-15012)
Female spherical bearing
Schéma roue femelle
PVR6432RF_1216
(MF-17012)
  Fixing bracket
Reference
Ø
Supplier reference
PNDET_SUP_D12DF
12
DH-M12
Support pour capteur
PNDET_SUP_D16DF
16
DH-M16

 Sensor
Reference
Ø
Characteristics
PNDET_DH7_PNO24C3
12-16-20-25
3 wires PNP 24 DC NO
Capteur pour verrin
PNDET_DH2_NO230C2
12-16-20-25
2 wires 230V


Documentation

documentation technic-achat Technical document

Certificates

certificat technic-achat CE Certificate

Online support

aide en ligne Technic-Achat How to choose a pneumatic cylinder?
aide en ligne Technic-Achat What are the required elements for controlling a cylinder?

Videos

vidéo Technic-AchatAssemblies and projects
