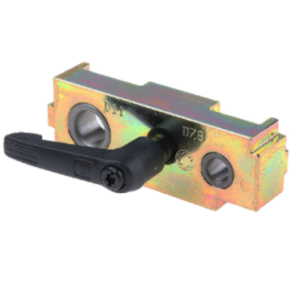

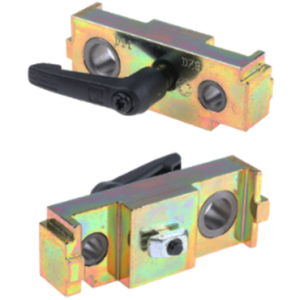

Drilling jig (without handle)

Drilling jig for aluminium profile (without handle)

More
Type of profile
Slot
TAOUT_GAB_8
€210.56 -5%
From €200.03 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Jigs (without handle) for accurate drillings:

Two through-holes (Ø6,5/Ø9,5) hexagonal socket screwdriver.
Two fastening holes (Ø11/Ø17) for mounting metal hinge with bearing, quick connectors and threaded sleeves.
Counterbores (Ø21) for pneumatic fittings (10mm slot only).


Reference
Slot
Doc
TAOUT_GAB_6
6 mm
documentation gabarit de perçage sans poignée
TAOUT_GAB_8
8 mm
documentation gabarit de perçage sans poignée
TAOUT_GAB_10
10 mm
documentation gabarit de perçage sans poignée
TAOUT_GAB_10_40
10 mm
documentation gabarit de perçage sans poignée
