Bolt connector

Bolt connector for aluminium profile

Select your connection
TAJON88_BOU30B
In stock : 11 products
€5.75 -5%
€5.46 Excl. tax


With a bolt connector, forces are symmetrically distributed
inside the profile by means of two screws.
It fits for very high loads and for torsions.


Material:

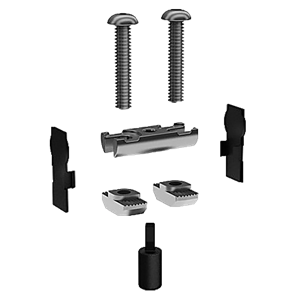

Bolt connector = galvanised steel + black PA covers included

 schéma jonction à boulon profilé aluminium

Reference
Slot
Drilling
A
(mm)
B
(mm)
TAJON88_BOU30B
8mm=8mm
D11
Positioning indication = 18mm from the edge
28
18
TAJON1010_BOU40B
10mm=10mm
D17
Positioning indication = 22,5mm from the edge
37.0
23.0
TAJON1010_BOU45B
10mm=10mm
D17
Positioning indication = 22,5mm from the edge
42.0
28.0
TAJON1010_BOU60B
10mm=10mm
D17
Positioning indication = 22,5mm from the edge
57.0
43.0
TAJON1010_BOU80B
10mm=10mm
D17
Positioning indication = 22,5mm from the edge
77.0
63.0
TAJON1010_BOU90B
10mm=10mm
D17
Positioning indication = 22,5mm from the edge
87.0
73.0

Documentation

documentation technic-achat Technical datasheet 8 mm

documentation technic-achat Technical datasheet 10 mm

Softwares & 3D

fichier 3D technic-achatTAJON88_BOU30B
fichier 3D technic-achatTAJON1010_BOU40B
fichier 3D technic-achatTAJON1010_BOU45B
fichier 3D technic-achatTAJON1010_BOU60B
fichier 3D technic-achatTAJON1010_BOU80B
fichier 3D technic-achatTAJON1010_BOU90B

Online support

aide en ligne Technic-Achat Assemblies with machining for aluminium profile
