Fast central connector

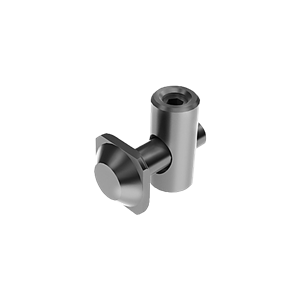

Fast central connector for aluminium profile.

More
Select your connection
TAJON66_SER_0090
€6.33 -5%
From €6.01 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788

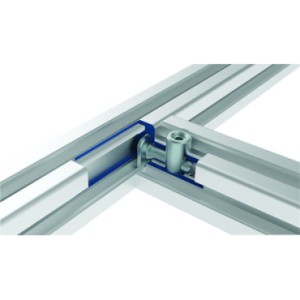

Fast central connector which can help to assemble supporting structures, protective barriers...
Increased accessibility for assembling.

Three slots are unobstructed for mounting surface elements.
Solution enabling to add support in an existing structure without disassembling, as well as mounting and disassembly of frames.

Material: galvanised steel.

Reference
Slot
(N)
A
(mm)
B
(mm)
b
(mm)
d
(Ø)
D
(mm)
t
(mm)
L
(mm)
SW
(mm)
Orientation
0°
TAJON66_SER_0090
6 mm
11.0
3.8
10.0
8.0
5.2
18.5
20.3
2.5
TAJON88_SER_00
      8 mm
      15.5
     5.0
     18.0
   11
  7.0
  22.0
33.0
4
TAJON810_SER_00
 8/10 mm
   19.5
   5.5
  18.0
 11
7.0
22.0
40.0
4
TAJON1010_SER_00
10 mm
19.5
5.5
22.5
17
9.7
31.0
45.5
6
Orientation
90°
TAJON66_SER_0090
6 mm
11.0
3.8
10.0
8.0
5.2
18.5
 20.3
2.5
TAJON88_SER_90
      8 mm
      15.5
     5.0
     18.0
   11
   7.0
  22.0
  33.0
4
TAJON810_SER_90
 8/10 mm
    19.5
  5.5
18
11
7
22
40
4
TAJON1010_SER_90
10 mm
19.5
5.5
22.5
17
9.7
31.0
45.5
6
