Hammer nut
Hammer nut for aluminium profile slot in 6, 8, 10 mm | EASI-Spare

Hammer nut

Hammer nut for aluminium profile.

Slot
Thread
TAECR6_QTR_M4
€0.73 -5%
From €0.69 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788

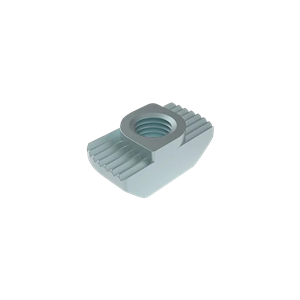

Hammer nut for aluminium profile slots in 6 mm, 8 mm, 10 mm.
Standard element for a safe and conductor junction.
Ideal for setting accessories after assemblies such as handles,
plates, hinges, brackets...

Material: galvanised steel
*Choose the width of the slot and the thread of the nut. Sales unit: 1 pc
Suits with the following profile bars:

6 mm slot: TAP6XXXX (20x20, 20x40...)
8 mm slot: TAP8XXXX (11x20, 15x30, 30x30, 30x60, 30x45...)
10 mm slot: TAP10XXXX (40x40, 40x80, 40x120, 45x45, 45x90, 80x80, 90x90, 90x180...)


Ref.
Slot**
A
B
C
D
M
(Thread)
H

[mm]

TAECR6_QTR_M4
6 mm
5.7
11.5
3.2
5.7
M4
1.0
TAECR8_QTR_M4
8 mm
7.7
16
4.5
7.7
M4
1.5
TAECR8_QTR_M5
8 mm
7.7
16
4.5
7.7
M5
1.5
TAECR8_QTR_M6
8 mm
7.7
16
4.5
7.7
M6
1.5
TAECR10_QTR_M4
10 mm
9.7
19
5.8
9.7
M4
3.0
TAECR10_QTR_M5
10 mm
9.7
19
5.8
9.7
M5
3.0
TAECR10_QTR_M6
10 mm
9.7
19
5.8
9.7
M6
3.0
TAECR10_QTR_M8
10 mm
9.7
19
5.8
9.7
M8
3.0

Documentation

documentation technic-achat Technical document TAECR6_QTR
documentation technic-achat Technical document TAECR8_QTR
documentation technic-achat Technical document TAECR10_QTR

Softwares & 3D

fichier 3D technic-achatTAECR6_QTR_M4
fichier 3D technic-achatTAECR8_QTR_M4
fichier 3D technic-achatTAECR8_QTR_M5
fichier 3D technic-achatTAECR8_QTR_M6
fichier 3D technic-achatTAECR10_QTR_M6
fichier 3D technic-achatTAECR10_QTR_M5
fichier 3D technic-achatTAECR10_QTR_M8

Online support

aide en ligne Technic-Achat Online support

Videos

vidéo Technic-AchatAssemblies and projects
