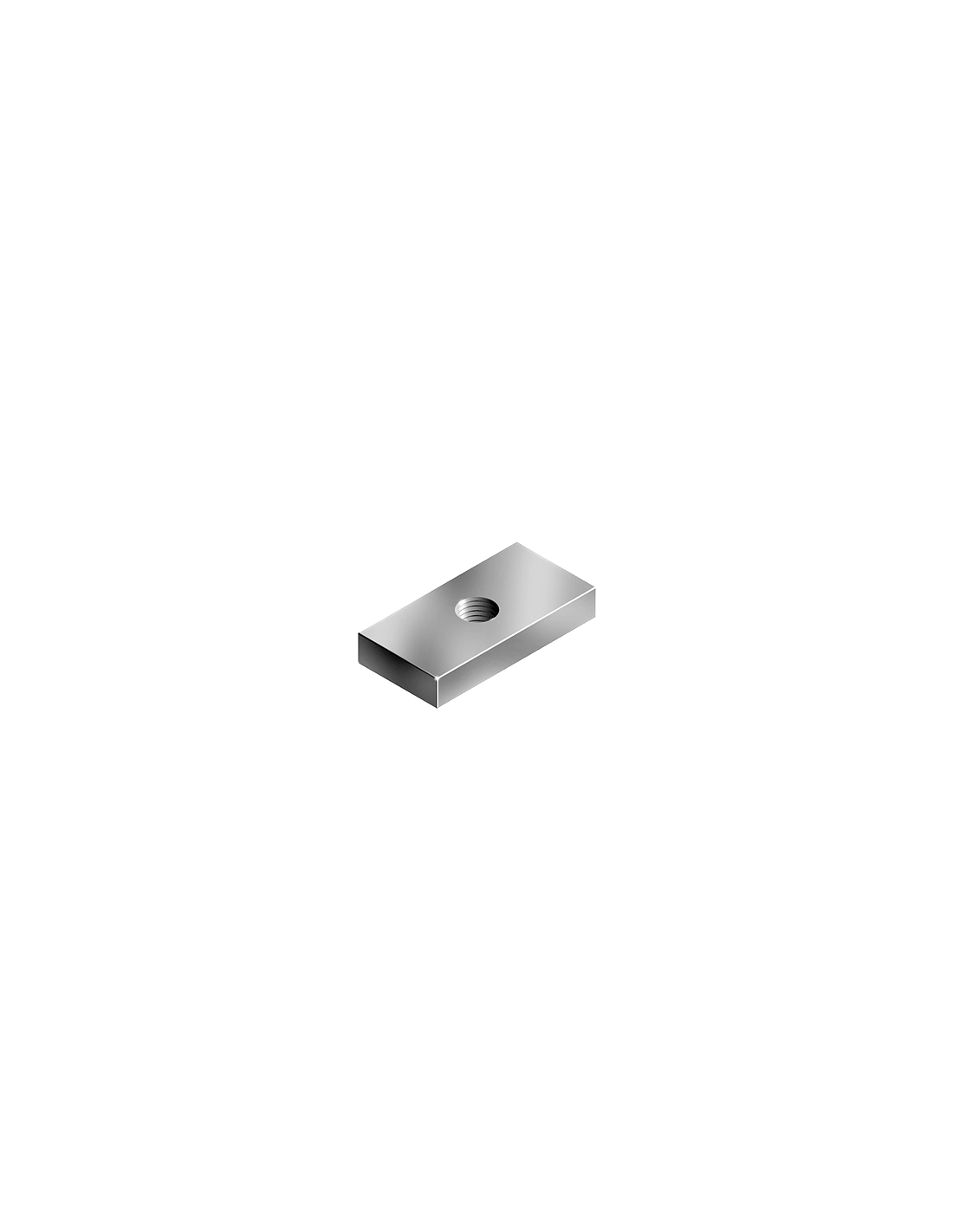

T-slot nut - threaded plate

Threaded plate for mounting aluminium profile

Slot

Size

Thread

Reference TAPAT_9X9X3_M5

In stock : 109 products

€0.20 -5%
€0.19 Excl. tax

Threaded plate for slots of 8 mm or 10 mm.

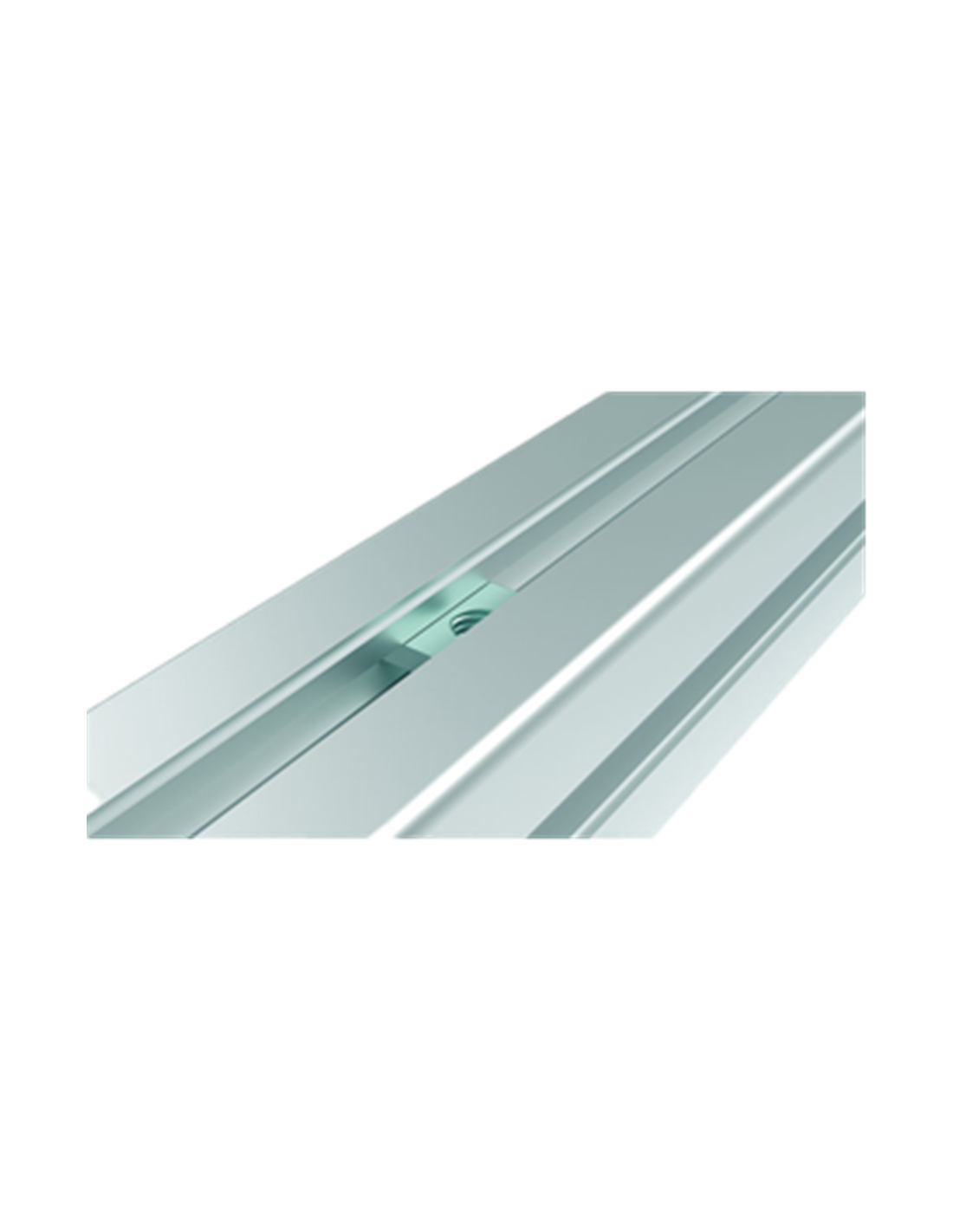

Enables to mount accessories in the slot, ensuring a safe absorption of important forces.

Material: galvanised steel

Sales unit: 1 pcs

Suits with the following profile bars:
Slot 6 mm: TAP6XXXX (20x20, 20x40...)
Slot 8 mm: TAP8XXXX (11x20, 15x30, 30x30, 30x60, 30x45...)
Slot 10 mm: TAP10XXXX (40x40, 40x80, 40x120, 45x45, 45x90, 80x80, 90x90, 90x180...)

Schéma côtes pour patins carrés avec rainures 8 ou 10 mm

Reference

Slot**

M
(thread)

[mm]

TAPAT_9X9X3_M5

6 mm

TAPAT_15X10X4_M6

8 mm

TAPAT_19X16X4_M5

10 mm

TAPAT_19X16X4_M6

10 mm

TAPAT_19X19X4_M6

10 mm

TAPAT_20X13X5_M6

10 mm

TAPAT_19X16X4_M8

10 mm

Documentation

documentation technic-achat Technical document TAPAT_XX_XX
Technical document TAPAT_19X19X4_M6

Softwares & 3D

fichier 3D technic-achat TAPAT_9X9X3_M5
TAPAT_15X10X4_M6
TAPAT_19X16X4_M5
TAPAT_19X16X4_M6
TAPAT_19X19X4_M6
TAPAT_20X13X5_M6

Online support

aide en ligne Technic-Achat Online support

Videos

Combinations	Slot	Size	Thread	Reference	Stock	Price	Add to cart
Slot : 6 mm Size : 9 x 9 x 3 mm Thread : M5 Reference : TAPAT_9X9X3_M5 Stock : 109	6 mm	9 x 9 x 3 mm	M5	TAPAT_9X9X3_M5	Available now Stock : 109	€0.20 Tax excl. €0.19 Tax excl. - 5%	€0.20 Tax excl. €0.19 Tax excl. (- 5%)
Slot : 8 mm Size : 15 x 10 x 4 mm Thread : M6 Reference : TAPAT_15X10X4_M6 Stock : 80	8 mm	15 x 10 x 4 mm	M6	TAPAT_15X10X4_M6	Available now Stock : 80	€0.27 Tax excl. €0.26 Tax excl. - 5%	€0.27 Tax excl. €0.26 Tax excl. (- 5%)
Slot : 10 mm Size : 19 x 16 x 4 mm Thread : M5 Reference : TAPAT_19X16X4_M5 Stock : 173	10 mm	19 x 16 x 4 mm	M5	TAPAT_19X16X4_M5	Available now Stock : 173	€0.29 Tax excl. €0.28 Tax excl. - 5%	€0.29 Tax excl. €0.28 Tax excl. (- 5%)
Slot : 10 mm Size : 19 x 16 x 4 mm Thread : M6 Reference : TAPAT_19X16X4_M6 Stock : 265	10 mm	19 x 16 x 4 mm	M6	TAPAT_19X16X4_M6	Available now Stock : 265	€0.31 Tax excl. €0.29 Tax excl. - 5%	€0.31 Tax excl. €0.29 Tax excl. (- 5%)
Slot : 10 mm Size : 19 x 16 x 4 mm Thread : M8 Reference : TAPAT_19X16X4_M8 Stock : 238	10 mm	19 x 16 x 4 mm	M8	TAPAT_19X16X4_M8	Available now Stock : 238	€0.31 Tax excl. €0.29 Tax excl. - 5%	€0.31 Tax excl. €0.29 Tax excl. (- 5%)
Slot : 10 mm Size : 20 x 13 x 5 mm Thread : M6 Reference : TAPAT_20X13X5_M6 Stock : 79	10 mm	20 x 13 x 5 mm	M6	TAPAT_20X13X5_M6	Available now Stock : 79	€0.29 Tax excl. €0.28 Tax excl. - 5%	€0.29 Tax excl. €0.28 Tax excl. (- 5%)
Slot : 10 mm Size : 19 x 19 x 4 mm Thread : M6 Reference : TAPAT_19X19X4_M6 Stock : 101	10 mm	19 x 19 x 4 mm	M6	TAPAT_19X19X4_M6	Available now Stock : 101	€0.31 Tax excl. €0.29 Tax excl. - 5%	€0.31 Tax excl. €0.29 Tax excl. (- 5%)
