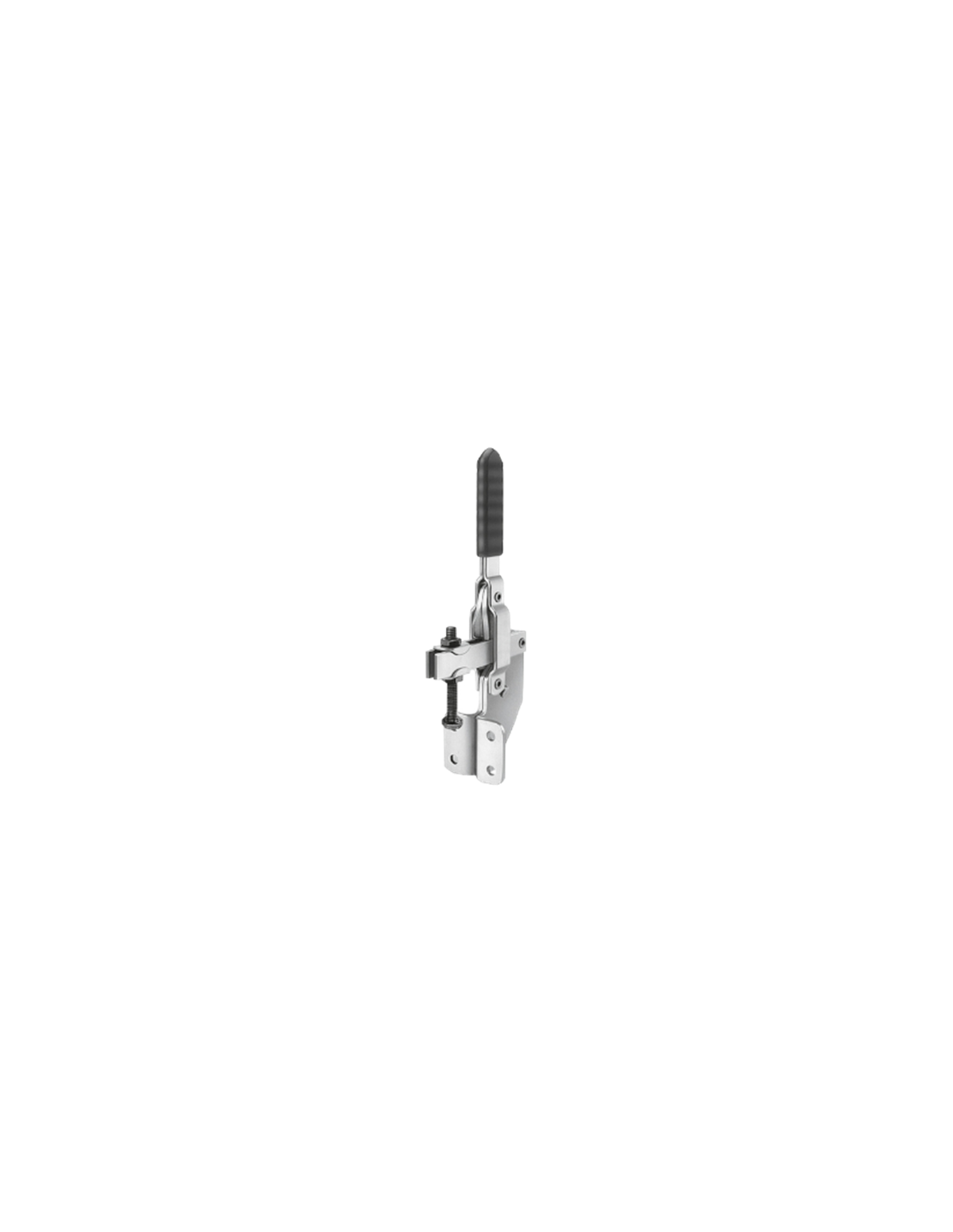

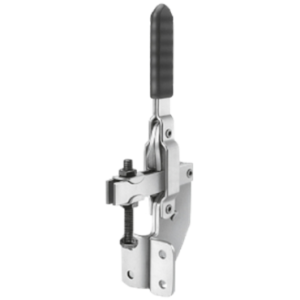

Vertical clamp with angular foot and adjustable spindle

Vertical clamp with angular foot and adjustable spindle


Select your vertical clamp
TAP_SAU_VPR_M8X60
€60.54 -5%
From €57.51 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Characteristics vertical clamp with angular foot and adjustable spindle:

- Clamp made of galvanised steel
- Clamping spindle and phosphate nuts
- Stainless steel rivet





- Axis with cushion
- Handle cover in oil-resistant plastic
- Clamp supplied with hexagonal rod head, nuts, thrust washers

TAP_SAU_VPR_M8X60 :
TAP_SAU_VER_M8X60 :

Reference
A
A1
A2
A3
B
B1
B3
C
C1
D
H
L
L1
L2
F (N)
TAP_SAU_VPR_M8X60
35
51
8
16
35
51
8.8
82
19
6.8
235
143
93
50
3000



TAP_SAU_VER_M8X60
25
43
9
19
34.5
52
8.8
34
19
8
186
143
100
3000



Reference
Clamping arm opening angle
Handle opening angle
Hand force
N
Holding force
Clamping force

Pos.1
Pin removed
Pos 1.
Pin removed

F1 (N)
F2 (N)
F3 (N)
F4 (N)
TAP_SAU_VPR_M8X60
105 °
160°
65°
90°
130
2000
3700
900
1850
TAP_SAU_VER_M8X60
105 °
160°
65°
90°
130
2000
3700
900
1850
