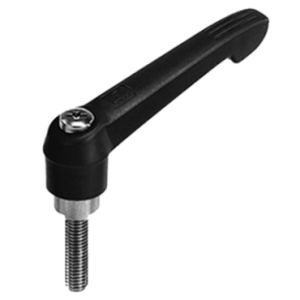

The stop lever is a handle that can manually lock sliding or rotating elements.
Used with an articulation or a hinge, it can block the direction of a panel
or a swivel arm following the defined angle.

Used with a T-slot nut, it can block the sliding of an element in the groove of the profile.

2 sizes of handles:

    • P40 length 40 mm
    • P65 length 65 mm

Lever material:


  • Glass fibre reinforced polyamide
  • Galvanised steel rod

Diagram dimensions [mm]

Schéma levier d'arrêt poignée
Reference
 D
D1
 D2
 H
 H1
 H2
 H3
 H4
A
A1
B
L
M

[mm]

_15M5_P40
   13.5
   18
   19.5
   29
  6.5
  17.5
  43
  47
40
75
9
15
M5
_20M6_P40
   13.5
   18
   19.5
   29
  6.5
  17.5
  43
  47
40
75
9
20
M6
_20M6_P65
   13.5
   18
   19.5
   29
  6.5
  17.5
  43
  47
65
75
9
20
M6
_20M8_P65
   13.5
   18
   19.5
   29
  6.5
  17.5
  43
  47
65
75
9
20
M8
_30M8_P65
   13.5
   18
   19.5
   29
  6.5
  17.5
  43
  47
65
75
9
30
M8
_45M8_P65
   13.5
   18
   19.5
   29
  6.5
  17.5
  43
  47
65
75
9
45
M8
_15M10_P65
13.5
18
19.5
29
6.5
17.5
43
47
65
75
9
15
M10
_20M10_P65
13.5
18
19.5
29
6.5
17.5
43
47
65
75
9
20
M10
