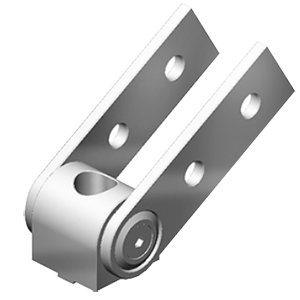

Pivot joint for aluminium profile

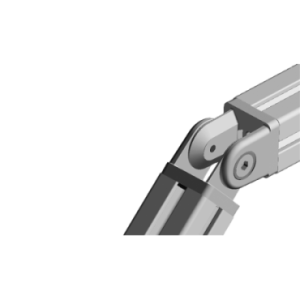

Adjusting pivot joint for aluminium profile

More
Type of profile
TAART_30X30
€25.12 -5%
From €23.86 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788

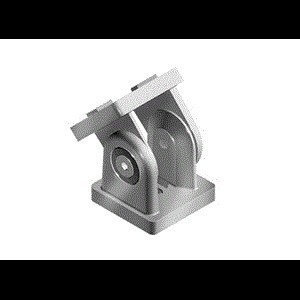

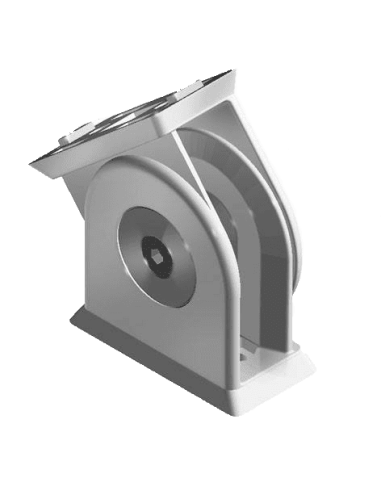

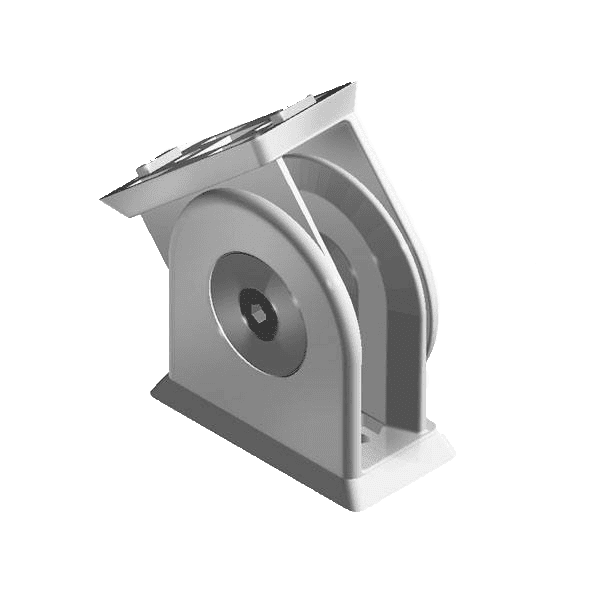

For connecting fixed or mobile profile in any angle.
Pivoting range 180°.

*It is possible to adjust the pivot joint with a lever stop TALEV_SRA_...

Material: die-cast zinc aluminium colour
Connectors included (the connector of the first diagram is not included).



schema cotes articulation pour profilé aluminiumschema cotes articulation renforcée nue pour profilé aluminium

Ref.
Profile
A
B
C
D
(Ø)
N
Profile pivot joint
[mm]

TAART_30X30
30X30
7
30
2.5
8.3
8
TAART_40X40
40x40
8
40
1.8
8.5
10
TAART_45X45
45X45
14
45
1.8
12.5
10
Ref.
Profile
N
H
B
D
E
F
(Ø)
Fortified profile pivot joint
[mm]

TAART_20X20_REN
20x20
6
61
20.4
20
18
5.5
TAART_45X45_REN
45X45
10
141.5
45.6
45
42
8.5

Documentation

documentation technic-achat Technical datasheet 30x30
documentation technic-achat 40x40
documentation technic-achat 45x45
documentation technic-achat 20x20_REN
documentation technic-achat 45x45_REN

Softwares & 3D

fichier 3D technic-achat30x30
fichier 3D technic-achat40x40
fichier 3D technic-achat45x45
fichier 3D technic-achat20x20_REN
fichier 3D technic-achat45x45_REN

Online support

aide en ligne Technic-Achat Online support
