Swivel fastening for aluminium profile

Swivel fastening H130 for mounting at 180°

Select a reference

Reference TAART_DR_130

€8.35 -5%
From €7.93 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

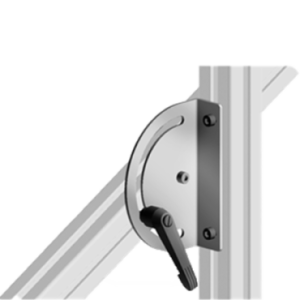

Swivel fastening H130 for mounting at 180° angle, designed for surface elements that need to be positionned at a 90° angle (ergonomic sorting type workstations, logistics...).

Mmax is 40Nm/fastening.

The product is sold alone, the following securing kits include:

TAART_DR_KIT88 : profilé 8 and 8mm slot for upright (R8) and the surface elements (R8)
TAART_DR_KIT810 : profile 8 and 10mm slot for upright (R10) and the surface elements (R8)
TAART_DR_KIT1010 : profile 10mm slot for upright and the surface elements

Schéma avec dimensions d'une articulation demi-rond H130 pour fixation d'orientation 180°

Reference

Description

Photos

TAART_DR_130

Swivel fastening H130f or mounting at 180°

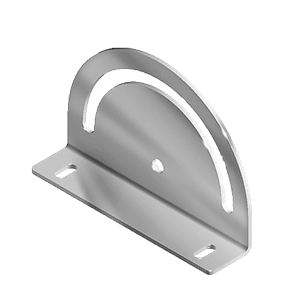

image profilé demi-rond h130 pour fixation d'orientation 180°

TAART_DR_KIT88

Securing set for profile R8/R8 (t-slot nuts + screws + washers)
Button diameter 32 M6x10

set de fixation pour profilé rainure de 8mm

TAART_DR_KIT810

Securing set for profile R8/R10 (t-slot nuts + screws + washers)
Button diameter 32 M6x10

set de fixation pour profilé rainure de 8mm/10mm

TAART_DR_KIT1010

Securing set for profile R10/R10 (t-slot nuts + screws + washers)
Button diameter 40 M8x10

set de fixation pour profilé rainure de 10mm
