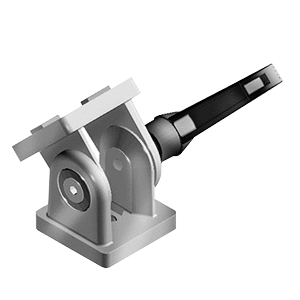

Pivot joint aluminium profile with locking lever

Name: Pivot joint aluminium profile with locking lever
Brand: FATH
SKU: TAART_XXXXX_LEV
Price: 23.29 EUR
Availability: InStock

Adjustable pivot joint aluminium profile with locking lever

Type of profile

Reference TAART_30X30_LEV

€24.52 -5%
From €23.29 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

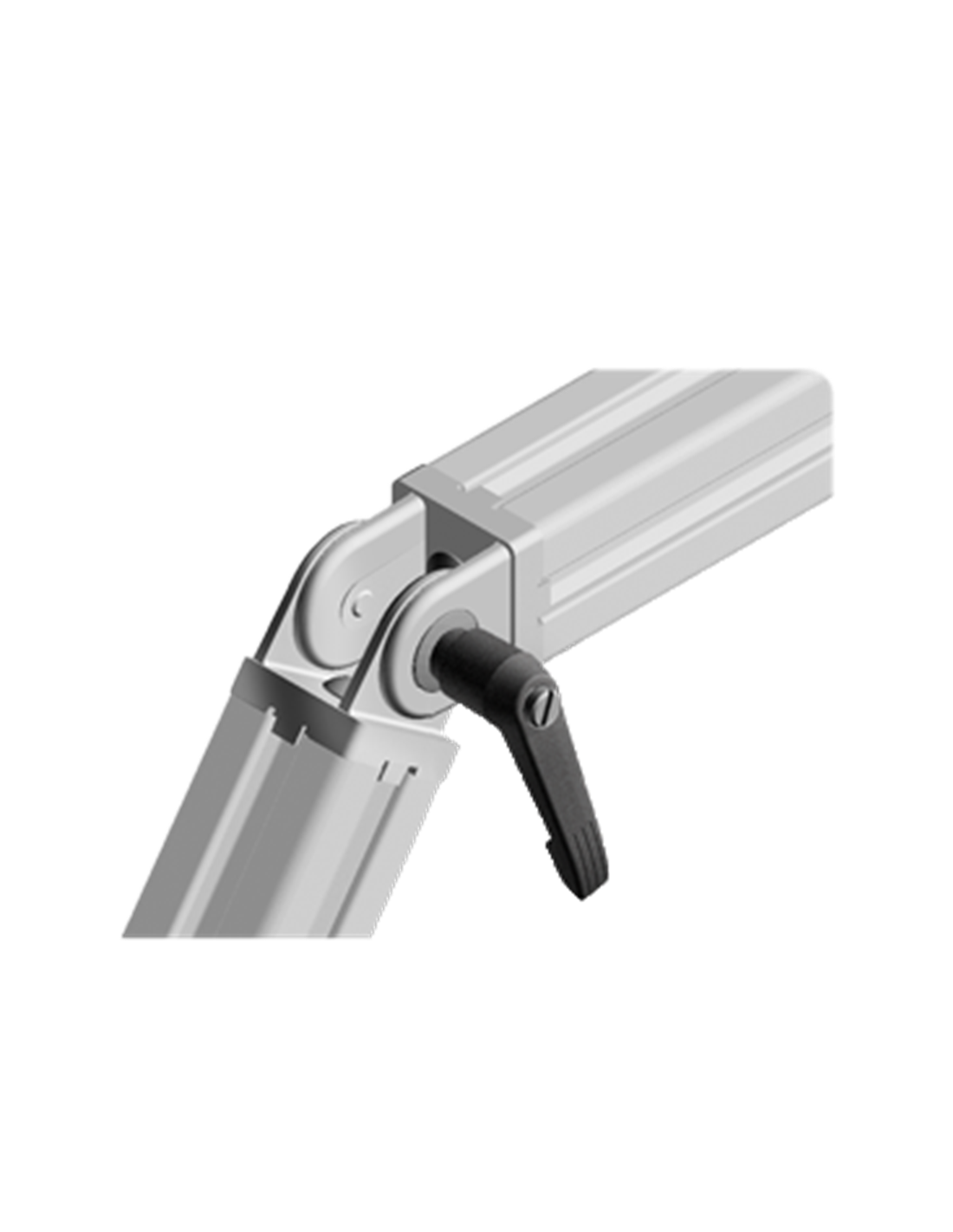

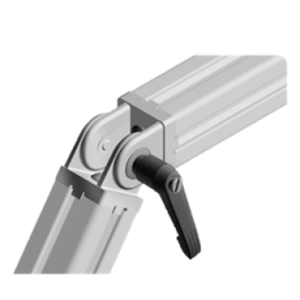

For connecting fixed or mobile profile in any angle.
Pivoting range 180°.

Delivered with a locking lever for locking the pivot joint in one position.

Material: die-cast zinc aluminium colour
Connectors included (the connector of the first diagram is not included)

Schéma côtes articulation pour profilé aluminium avec levier 30x30

Ref.

Profile

D
(Ø)

Profile pivot joint with lever

[mm]

TAART_30x30_LEV

30x30

2.5

8.3

TAART_40x40_LEV

40x40

1.8

8.5

TAART_45x45_LEV

45x45

1.8

12.5

Documentation

documentation technic-achat Technical datasheet 30x30
Technical datasheet 40x40
Technical datasheet 45x45

Softwares & 3D

fichier 3D technic-achat 30x30
40x40
45x45

Online support

aide en ligne Technic-Achat Online support

Videos

vidÃ©o Technic-Achat Assemblies and projects

Schéma explicatif d'une articulation réglable pour profilé aluminium avec levier d'arrêt
