GSM remote control relay simplymax MAX_P01 & MAX_P04 GSM 2 or 4 I/O 230V
With GSM integrated, used for remote control by using a mobile phone.
€180.00
€171.00
Excl. tax
| Automation system inputs | 2 Di 4 Di |
| Automation system outputs | 2 Rel 4 Rel |
| Combinations | Automation system inputs | Automation system outputs | Reference | Stock | Price | Add to cart |
|
Automation system inputs :
2 Di
Reference : MAX_P01
|
2 Di |
2 Rel |
MAX_P01 |
Available now Stock : 2 |
€180.00 Tax excl. - 5% €171.00 Tax excl. |
€180.00 Tax excl. |
|
Automation system inputs :
4 Di
Reference : MAX_P04
|
4 Di |
4 Rel |
MAX_P04 |
Available now Stock : 1 |
€258.00 Tax excl. - 5% €245.10 Tax excl. |
€258.00 Tax excl. |

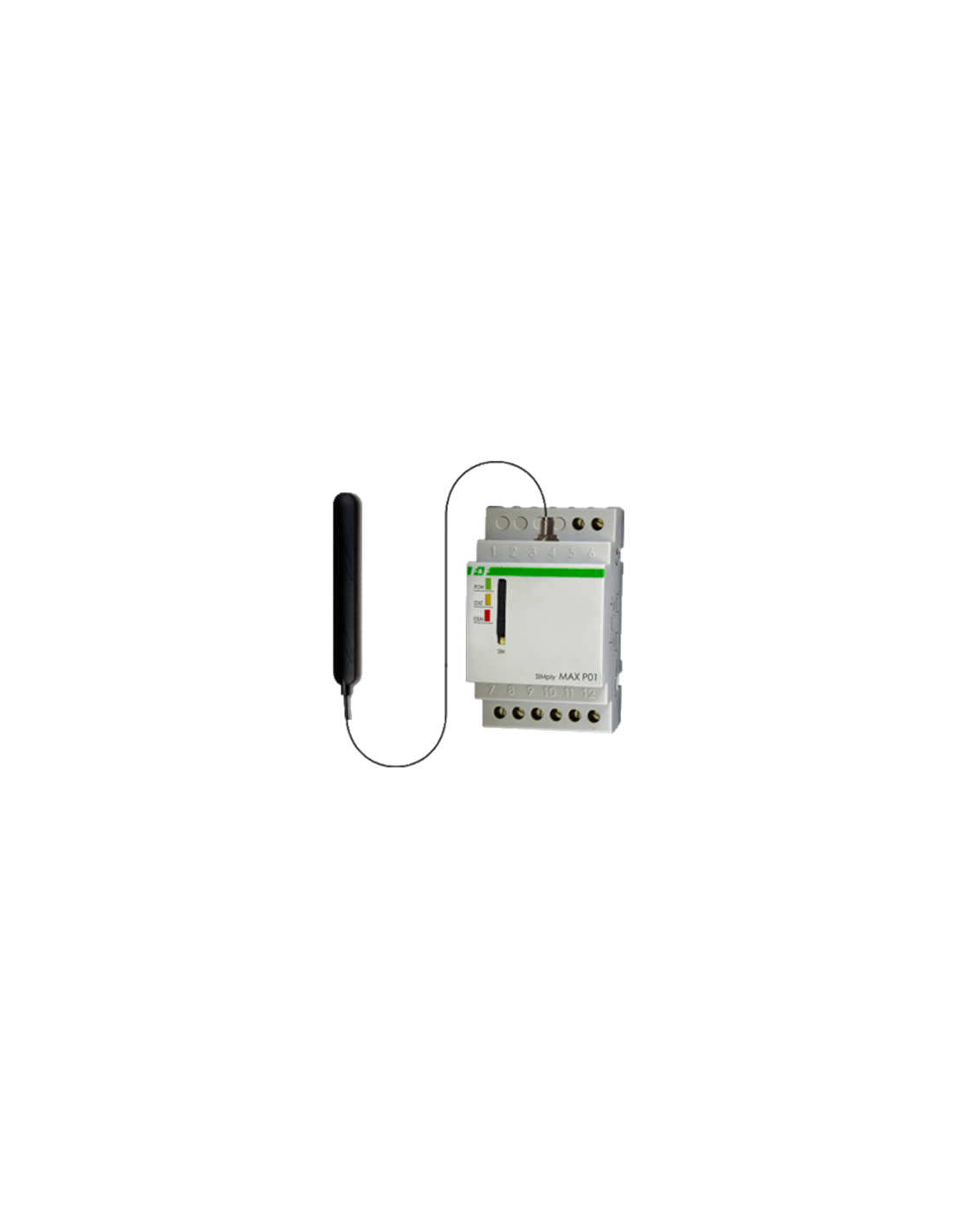

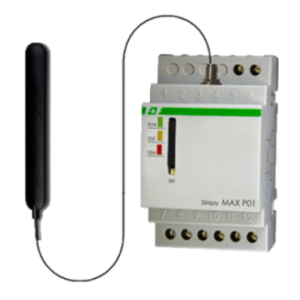

MAX P01
It is a relay with an integrated GSM communication, used for remote controlling by using a mobile phone (programming by SMS). Enables to handle easily and to monitor devices outputs conditions connected to the conductor's inputs.
Example:
CONTROLLING OUTPUTS
OUT1 ON - switch ON output 1 (OUT1)
OUT1 OFF - switch OFF output 1 (OUT1)
REQUEST ABOUT STATE
STATUS - query about the state all of the inputs and outputs.
Example:
Command: STATUS Answer: WE1 ON WE2 OFF WY1 OFF WY2 ON
REDEFINITION OF INPUTS, OUTPUTS AND STATES NAMES
Examples
INPUT 1
Definition: TEXT! IN1 GATE OPEN CLOSE
Question: GATE?
Answer: GATE OPEN OUTPUT 2
Definition: TEXT! OUT1 pump_2 turnedON turnedOFF
Question: pump_2?
Answer: pump_2 work
Commands: pump_2 ON
MAX_P01
2 Items
Specific References
- ean13
- 5908310000000
Characteristics/Features
- Power supply 230 VAC (160 to 260 VAC) .
- Consumption 1.3W (standby), 3W in communication.
- Operating temperature: -10°C to 50°C.
- Port: SIM card insertion on front.
- Programming by SMS.
- Outputs switching, with delay.
- Sending alarms by SMS.
- Up to 5 phone numbers.
- Password 4 to 8 characters.
- Possibility to question the condition of an input by SMS.
- Customization of I/O names in the SMS.
- Sending SMS when receiving commands.
- Consumption 1.3W (standby), 3W in communication.
- Operating temperature: -10°C to 50°C.
- Port: SIM card insertion on front.
- Programming by SMS.
- Outputs switching, with delay.
- Sending alarms by SMS.
- Up to 5 phone numbers.
- Password 4 to 8 characters.
- Possibility to question the condition of an input by SMS.
- Customization of I/O names in the SMS.
- Sending SMS when receiving commands.
Ref.InputsOutputsModules
MAX_P01223
MAX_P04444
MAX_P01 MAX_P04
