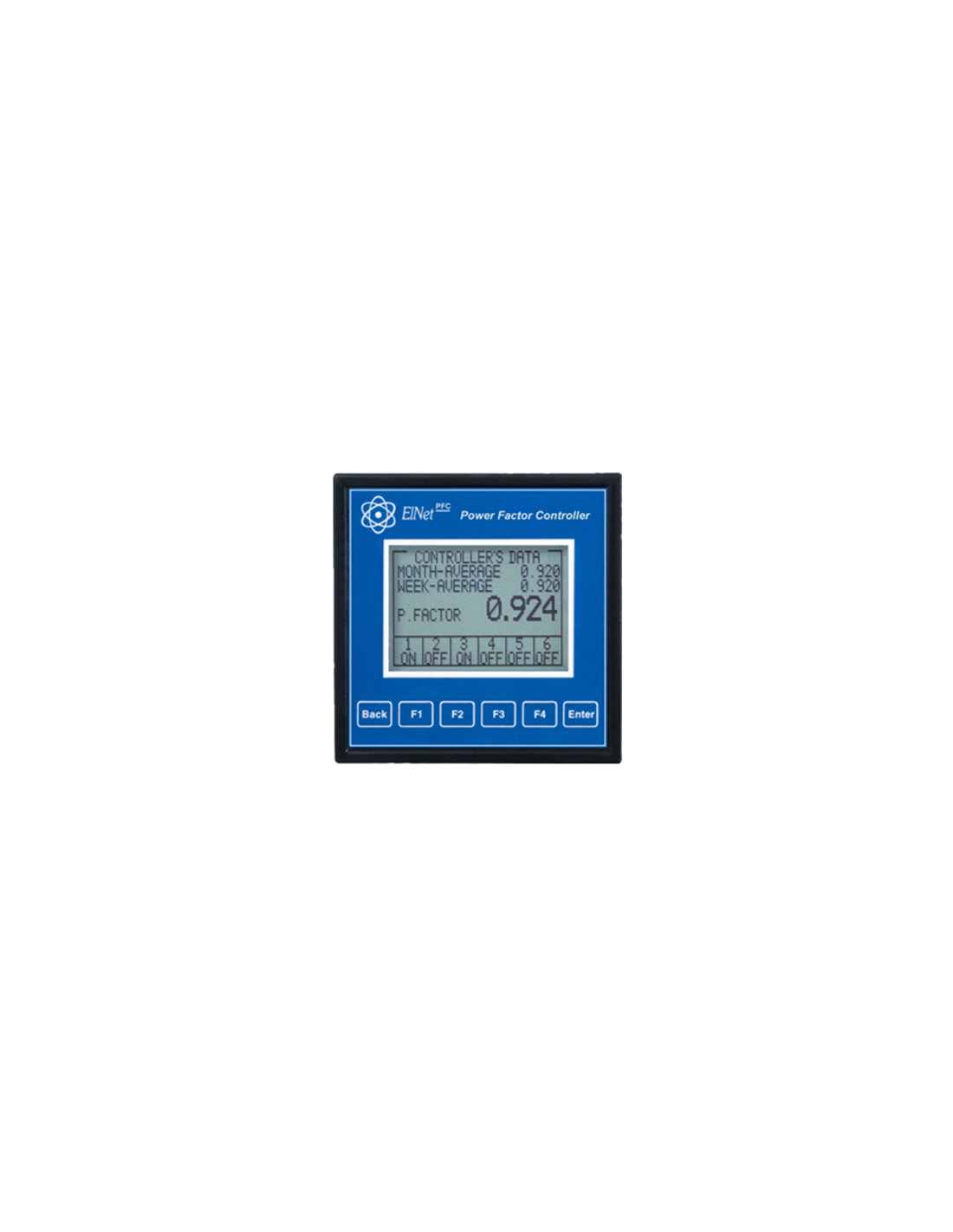

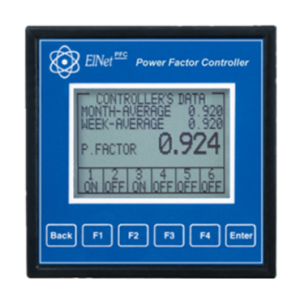

Elnet PFC power factor controller wattmeter cosPHI, 6 steps

ELNET

Elnet PFC wattmeter power factor controller cosPHI, 6 switching relay stages

More
Reference
WAT_PFC
€280.47 -5%
From €266.45 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Wattmeter, ELNET PFC electricity meter.
Panel mounting with built-in RS485 MODBUS communication.


Technical characteristics


Measurement parameters
6 output relays.
Voltage, current, power factor (cos Phi).
Real time power factor display.
Setting current and voltage limits.
Automatic identification of capacitor's size.
Power supply
Power supply:90 to 250V AC 50/60Hz
Energy consumption: 8VA
Specifications
Dimensions:  96 x 96x 80 mm / 650g
Operating conditions: -20°C/70°C / 0- 95% RH

Measurement range
Voltage:
0 - 650V AC
With CT: up to 99999KV
Maximum input voltage 1000V
Current:
With CT: up to 99999KA
Maximum current: 6A
Precision
0.5%
Communication
RS485 communication port
Mounting
Panel
Other
High resolution (128x64 pixels), easily set up.

Documentation

documentation technic-achat Technical datasheet

Online support

aide en ligne Technic-Achat Power diagram and reactive power compensation principle

Videos

vidéo Technic-AchatAssemblies and projects
