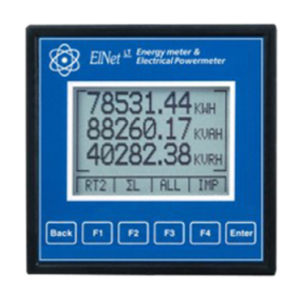

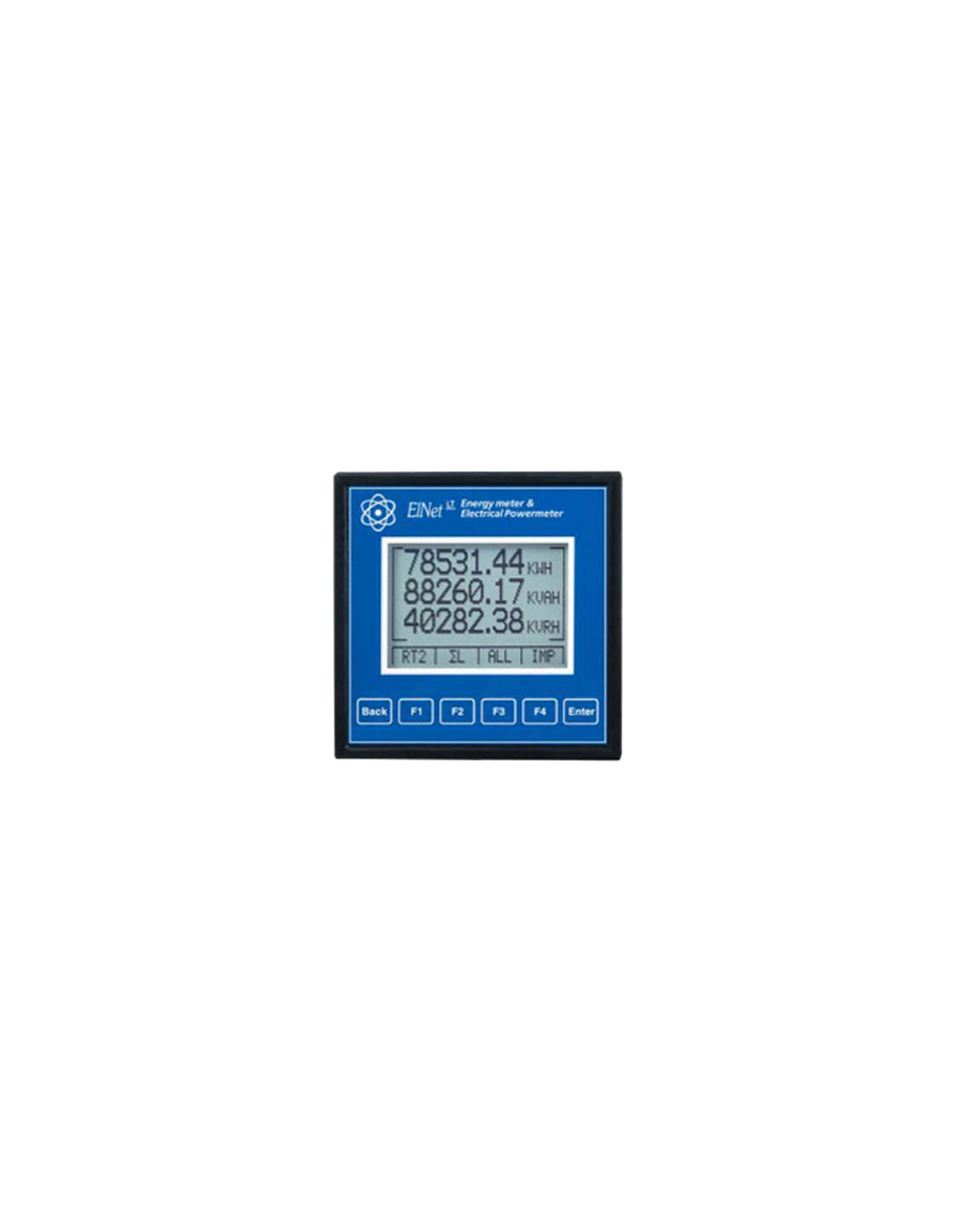

Elnet LT wattmeter, V, I, P (Q, S), F, PF, harmonics LDC display

Name: Elnet LT wattmeter, V, I, P (Q, S), F, PF, harmonics LDC display
Brand: ELNET
SKU: WAT_LT_XX
Price: 306.44 EUR
Availability: InStock

Brand: ELNET

Wattmeter - Electricity meter, power and quality.
V, I, P (Q, S), F, PF, harmonics LCD display + RS485

Reference

Reference WAT_LT

€322.57 -5%
From €306.44 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

Wattmeter, electricity meter and power quality analyser.
Panel mounting with built-in RS 485 MODBUS communication.

Technical characteristics

Measurement parameters

Input: 3 phases + Neutral
Power (active, reactive, apparent), voltage, current, ower factor (cos Phi), frequency.
energy (T.O.U): up to 6 months of data logging
32nd Harmonics (bargraph)
Maximum value for each measure.
Measurement between phases and neutral-phase 1 way
Ethernet port

Power supply

Power supply: 230V AC 50/60Hz ( ±10%)

Energy consumption: 20VA

Specifications

Dimensions: 96 x 96 x 80 mm / 650gr
High resolution display (128x64 pixels)

Operating conditions:
-20°C/70°C
0- 95% RH

Measurement range

Voltage:
0 - 650V AC
With CT: up to 99999KV
Max input voltage 1000V

Current:
With CT: up to 99999KA
Maximum current: 6A

Precision

0.2%, 1600 samples per cycle

Communication
