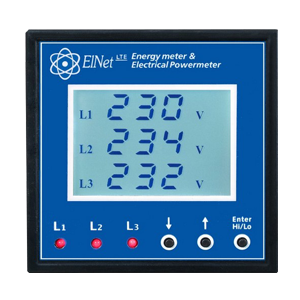

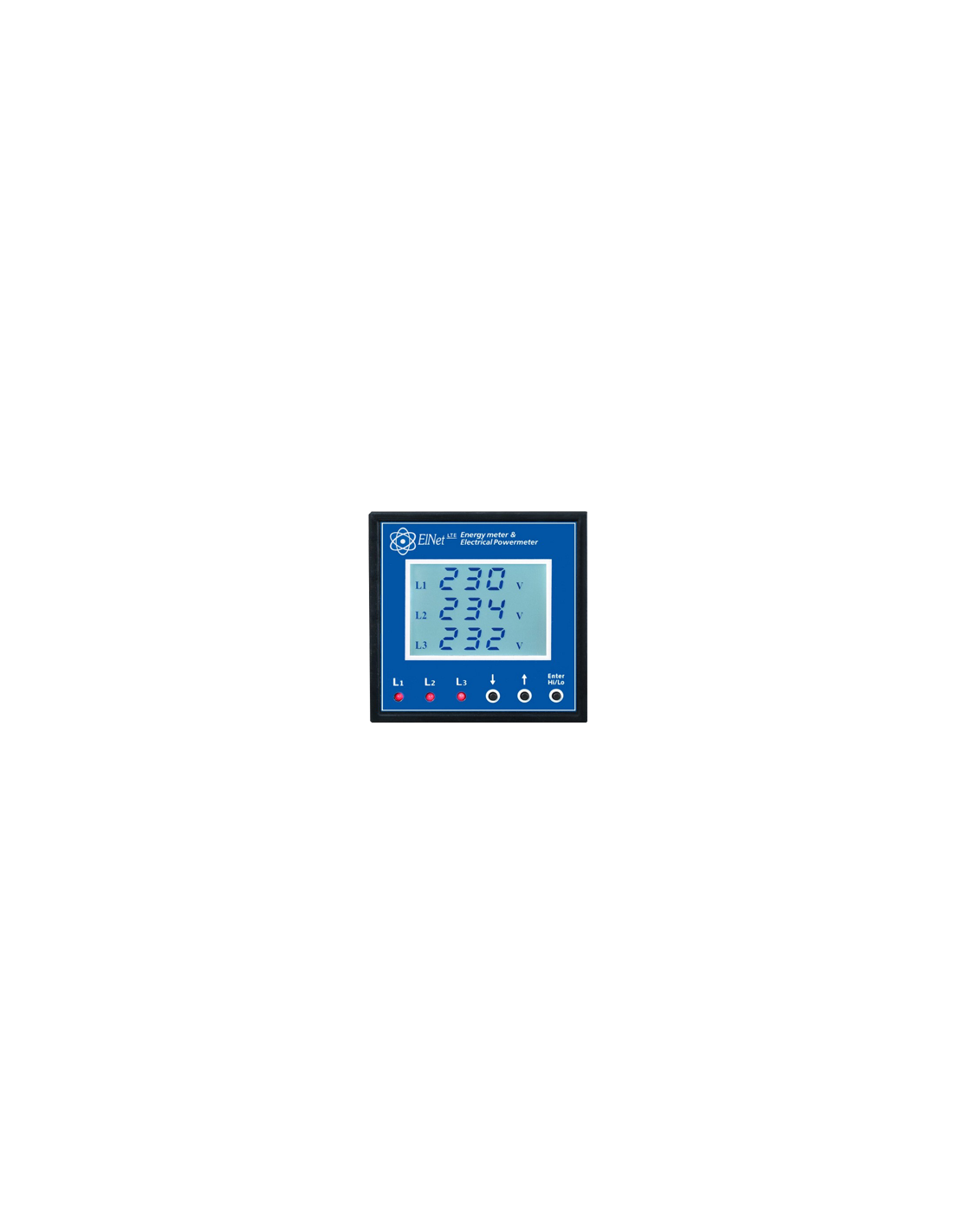

Elnet LTE Wattmeter V, I, P (Q, S), F, PF, THD RS485 MODBUS

ELNET

Wattmeter, three-phase electricity meter
V, I, P (Q, S), F, PF, THD, LCD display + RS485

More
Reference
WAT_LTE
€242.29 -5%
From €230.18 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Wattmeter, ELNET LTE electricity meter.
Panel mounting with built-in RS485 MODBUS communication.



Technical characteristics

Measurement parameters
Input: 3 phases + Neutral
Power, voltage, current, power factor (cos Phi), frequency, energy.
Distortion rate: THD-I and THD-V
Maximum value for each measure.
Measurement between phases and neutral-phase 1 way
Power supply
Power supply: 230V AC 50/60Hz ( ±10%)
Energy consumption: 20VA

Specifications
Dimensions:
96 x 96 x 80 mm / 450gr
Backlit LCD display + voltage indicator led
Operating conditions:
-20°C/70°C
0- 95% RH
Measurement range
Voltage:
0 - 650V AC
With CT: up to 999KV
Max input voltage 1000V
Current:
With CT: up to 999KA
Maximum current: 6A
Precision
0.52% full scale
Communication
RS485 communication port (Modbus RTU 8,1,N(ou E),1), Ethernet port
Monting
panel
Other
no voltage output relay

Documentation

documentation technic-achat Sales document
documentation technic-achat Display and menu
documentation technic-achat User's manual
documentation technic-achat Wiring
documentation technic-achat MODBUS Protocol

Certificates

certificat technic-achat CE Certificate
