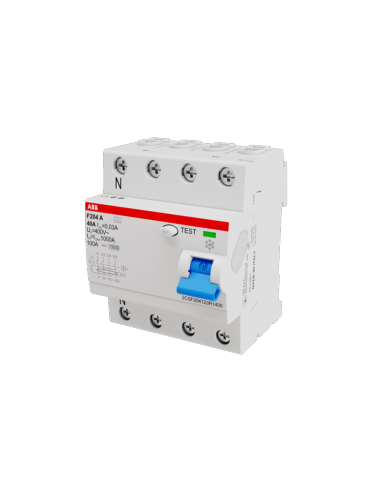

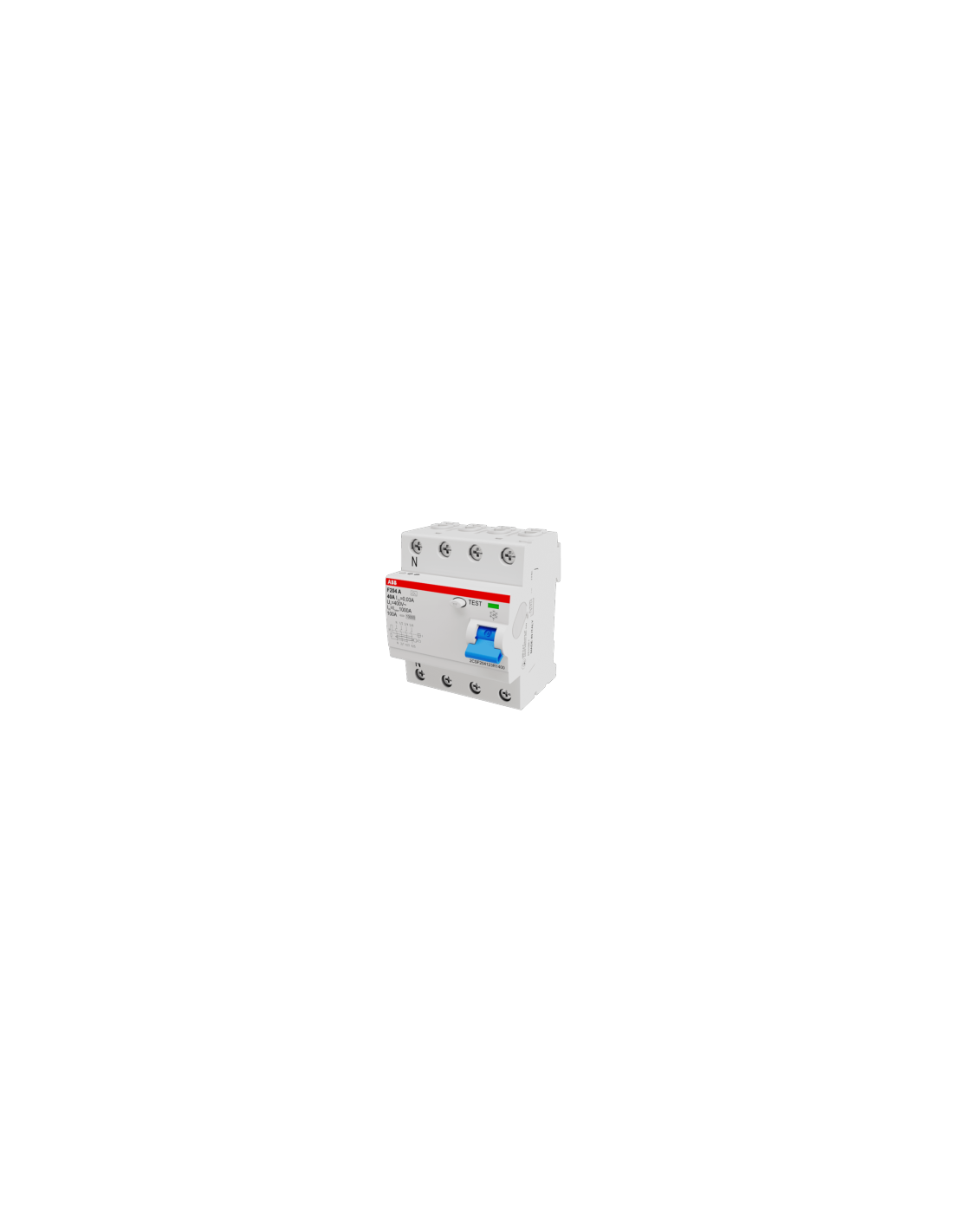

Residual current cricuit breaker 4-pole type A
Delivery throughout Europe
Secure payment
English speaker +33535565788
Residual current circuit breaker type A
Range of residual current circuit breaker F200 ABB to protect people and electrical systems.
Suitable for systems where neutral is positioned on the left.
Technical characteristics:
- Residual current type: type A
- Number of poles: 4-pole
- Residual current: 30mA
- Voltage: 230 / 400V AC
- Set frequency: 50/60Hz
- Mounting type: DIN rail
| Reference | Supplier reference | Rated current |
| F204A-025-0.03A | 2CSF204123R1250 | 25A |
| F204A-040-0.03A | 2CSF204123R1400 | 40A |
| F204A-063-0.03A | 2CSF204123R1630 | 63A |
| F204A-080-0.03A | 2CSF204123R1800 | 80A |
| F204A-100-0.03A | 2CSF204123R1900 | 100A |
| F204A-125-0.03A | 2CSF204123R1950 | 125A |
