Geared motor 12VDC compact type 2 - 15W

Compact geared motor type 2 12VDC 3200rpm 15W Speed = 15 rpm

More
Rotation speed
MZD_2C12_015_N015L
€89.67 -5%
From €85.19 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Compact geared motor 15 Watt 12 VDC


Low power compact geared motors MZD series are composed of a direct current motor and a high precision planetary reduction gear.


Technical characteristics:

  • Voltage: 12 VDC
  • Power: 15W
  • Rotation speed: 15 to 1000 rpm depending on the model

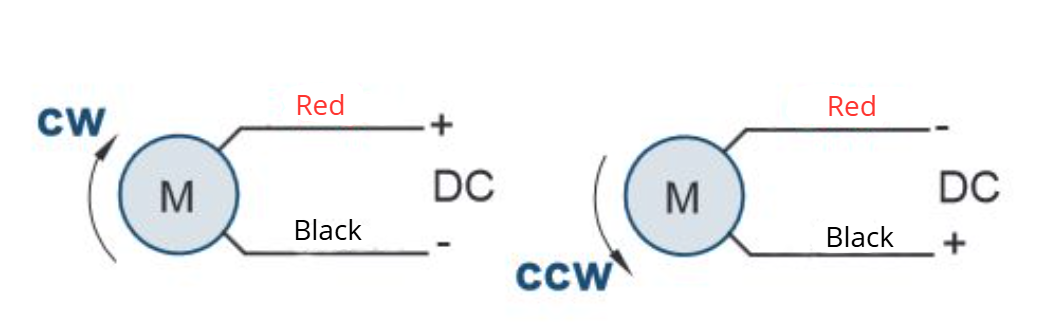

  • Rotation direction reversal


Advantages:

  • Low noise
  • Modular
  • High efficiency
  • Light
Reference
Output speed
nom. rpm
Output torque
max N.m
Ratio
MZD_2C12_015_N015L
15
3
1:200
MZD_2C12_015_N020L
20
3
1:150
MZD_2C12_015_N030L
30
3
1:100
MZD_2C12_015_N040L
40
2.35
1:75
MZD_2C12_015_N060L
60
1.74
1:50
MZD_2C12_015_N100L
100
1.04
1:30
MZD_2C12_015_N120L
120
0.87
1:25
MZD_2C12_015_N200L
200
0.58
1:15
MZD_2C12_015_N240L
240
0.48
1:12.5
MZD_2C12_015_N300L
300
0.39
1:10
MZD_2C12_015_N600L
600
0.19
1:5
MZD_2C12_015_N1000L
1000
0.12
1:3

Certificates

certificat technic-achat CE Certificate

Documentation MZD_2C12_015

 Technical datasheet MZD_2C12_015 (FR)
 Technical datasheet MZD_2C12_015 (EN-DE)

Documentation MZD Size 2 (60x60)

 Technical datasheet MZD T2 (FR)
 General specifications Compact geared motor MZD (EN)

Catalogue ZD MOTOR

 Catalogue ZD Motor - Geared motor AC/DC (EN)

Softwares & 3D

3D File

Online support

aide en ligne Technic-Achat Online support

Videos

vidéo Technic-AchatAssemblies and projects

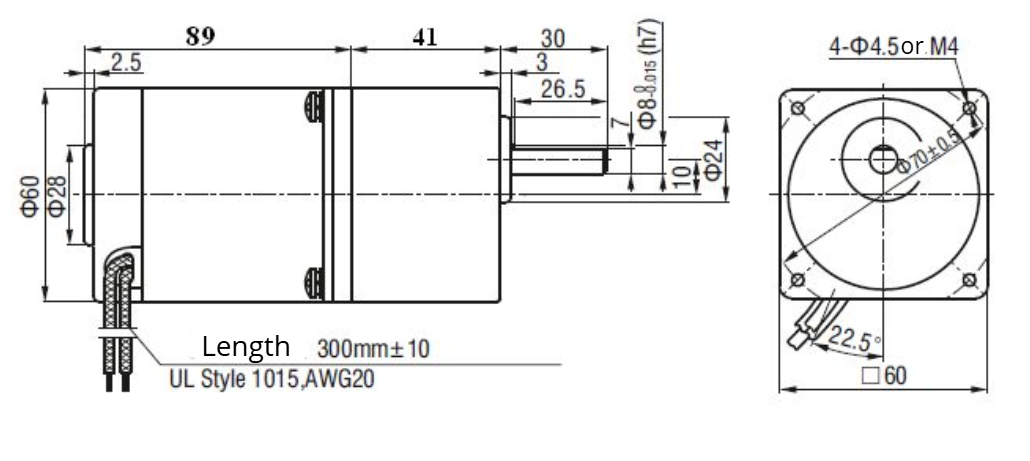

schéma motoréducteurs compacts à faible puissance, série MZD
schéma motoréducteurs compacts à faible puissance, série MZD
schéma motoréducteurs compacts à faible puissance, série MZD
