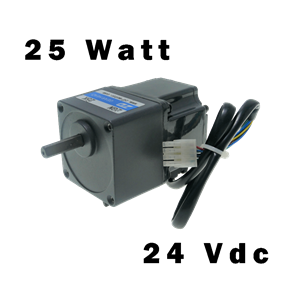

Compact brushless geared motor 24VDC compact type 2 - 25W

Compact brushless geared motor type 2 24VDC 3200rpm 25W Speed = 15 rpm

More
Rotation speed
MZD_2B24_025_N015L
€85.75 -5%
From €81.46 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Compact geared motor 25 Watt 24 VDC


Low power compact geared motors MZD series are composed of a brushless motor and a high precision planetary reduction gear.

Technical characteristics:

  • Voltage: 24 VDC
  • Power: 25W
  • Rotation speed: 15 to 1000 rpm depending on the model
  • Rotation direction reversal


Advantages:

  • Low noise
  • Modular
  • High efficiency
  • Light
Reference
Output speed
nom. rpm
Output torque
max N.m
Ratio
MZD_2B24_025_N015L
1 to 15
3
1:200
MZD_2B24_025_N020L
1.5 to 20
3
1:150
MZD_2B24_025_N030L
2 to 30
3
1:100
MZD_2B24_025_N040L
3 to 40
3
1:75
MZD_2B24_025_N060L
4 to 60
3
1:50
MZD_2B24_025_N100L
6 to 100
2.72
1:30
MZD_2B24_025_N120L
8 to 120
2.27
1:25
MZD_2B24_025_N200L
13 to 200
1.51
1:15
MZD_2B24_025_N240L
16 to 240
1.26
1:12.5
MZD_2B24_025_N300L
20 to 300
1.08
1:10
MZD_2B24_025_N600L
40 to 600
0.50
1:5
MZD_2B24_025_N1000L
120 to 1000
0.30
1:3

Certificates

certificat technic-achat CE Certificate

Documentation MZD_2B24_025

 Technical datasheet MZD_2B24_025 (FR)
 Technical datasheet MZD_2B24_025 (EN-DE)

Documentation MZD Size 2 (60x60)

 Technical datasheet MZD T2 (FR)
 General specifications Compact geared motor MZD (EN)

Catalogue ZD MOTOR

 Catalogue ZD brushless Motor - Geared motor (EN)

Softwares & 3D

3D File

Online support

aide en ligne Technic-Achat Online support

Videos

vidéo Technic-AchatAssemblies and projects

schéma motoréducteurs compacts à faible puissance, série MZD
schéma motoréducteurs compacts à faible puissance, série MZD
schéma motoréducteurs compacts à faible puissance, série MZD
