Geared motor compact T2 220V 6w Speed-7,5 rpm

Name: Geared motor compact T2 220V 6w Speed-7,5 rpm
Brand: ZD MOTOR
SKU: MZD_2M4F_006_XX
Price: 46.95 EUR
Availability: InStock

Geared motor compact type 2, 220V single variable speed 6w Speed= 7,5 rpm

Rotation speed

Reference MZD_2M4F_006_N007L

€49.42 -5%
From €46.95 Excl. tax

Information request

Delivery throughout Europe

Secure payment

English speaker +33535565788

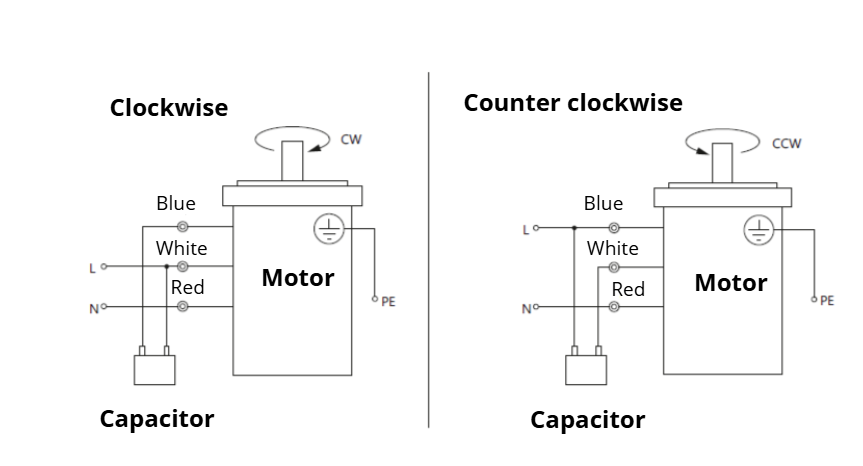

Low power compact geared motors MZD series are composed of an induction motor and a high precision planetary reduction gear. They are 230V single-phase and require a capacitor, it is possible to reverse the way. It is also available with a brake.

Technical characteristics:

Voltage: 230 V
Frequency: 50 Hz

Advantages:

Low noise
Modular
High efficiency
Light

Motor reference: 2IK6GN_C (speed 1500 rpm)

ReferenceGeared unit
referenceOutput speed
nom. rpm
(min. to max)*Output torque
max N.mRatio

MZD_2M4_006_N007L2GN200K7,5
(0,45 to 6)31:200

MZD_2M4_006_N010L2GN150K10
(0,6 to 8)31:150

MZD_2M4_006_N015L2GN100K15
(0,9 to 12)31:100

MZD_2M4_006_N020L2GN75K20
(1,2 to 16)2.41:75

MZD_2M4_006_N030L2GN50K30
(1,8 to 24)1.61:50

MZD_2M4_006_N050L2GN30K50
(3 to 40)1.11:30

MZD_2M4_006_N060L2GN25K60
(3,6 to 48)0.881:25

MZD_2M4_006_N0100L2GN15K100
(7,2 to 96)0.581:15

MZD_2M4_006_N120L2GN12K5120
(7,2 to 96)0.491:12.5

MZD_2M4_006_N0150L2GN10K150
(15 to 140)0.391:10

MZD_2M4_006_N0300L2GN5K300
(28 to 280)0.191:5

MZD_2M4_006_N0500L2GN3K500
(45 to 470)0.121:3

Related products

US26WFrequency variable drive ZD6W

Adding the geared unit 2GN10XK enables the total speed to be divided by 10.

Certificates

certificat technic-achat CE Certificate

Documentation MZD_2M4F_006

Technical datasheet MZD_2M4F_006 (FR)
Technical datasheet MZD_2M4F_006 (EN-DE)

Documentation MZD Size 2 (60x60)

Technical datasheet MZD T2 (FR)
General specifications Compact geared motor MZD (EN)

Catalogue ZD MOTOR

Catalogue ZD Motor - Geared motor AC/DC (EN)

Softwares & 3D

3D File

Online support

Choosing a geared motor

Videos

schéma motoréducteurs compacts à faible puissance, série MZD
