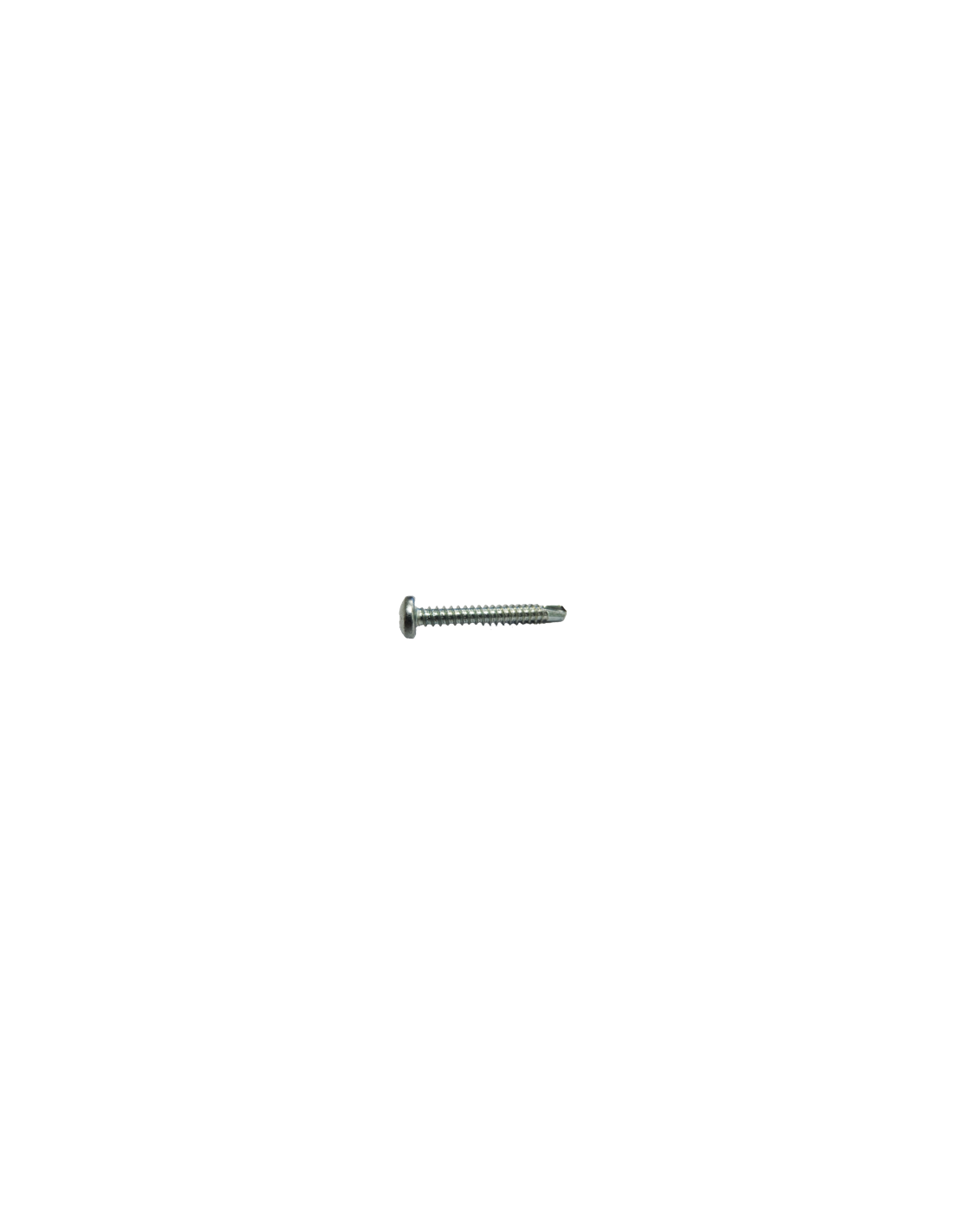

Self drilling screws socket head and cross head DIN 7504-N galvanised steel
Self drilling screws socket head and cross head DIN 7504-N galvanised steel, box with 100 units
Information request
close
Delivery throughout Europe
Secure payment
English speaker +33535565788
Characteristics:
-Product of category A.
-Tolerance class ISO 4759.
-Mechanical characteristics according to UNI EN ISO 10666
Class/Materials: C15 carburized
UNI: 8118
Family: 85300
DIN: 7504-N
ISO: 15481
The three standards are not perfectly identical. For practical purposes, the differences enable in most cases to use them indifferently. The table refers to the standard DIN.
The screw cross head is adapted to the use of a screw-gun.
References
d x L
dk
k
Packing/units
d3.5
VIS_APC_M35X13ACG100
3.5x13
7
2.6
1000
d3.9
VIS_APC_M39X32ACG100
3.9x32
7.5
2.8
500
d4.2
VIS_APC_M42X16ACG100
4.2x16
8
3.1
1000
VIS_APC_M42X19ACG100
4.2x19
8
3.1
1000
VIS_APC_M42X25ACG100
4.2x25
8
3.1
1000
d4.8
VIS_APC_M48X32ACG100
4.8x32
9.5
3.7
500
VIS_APC_M48X38ACG100
4.8x38
9.5
3.7
500
