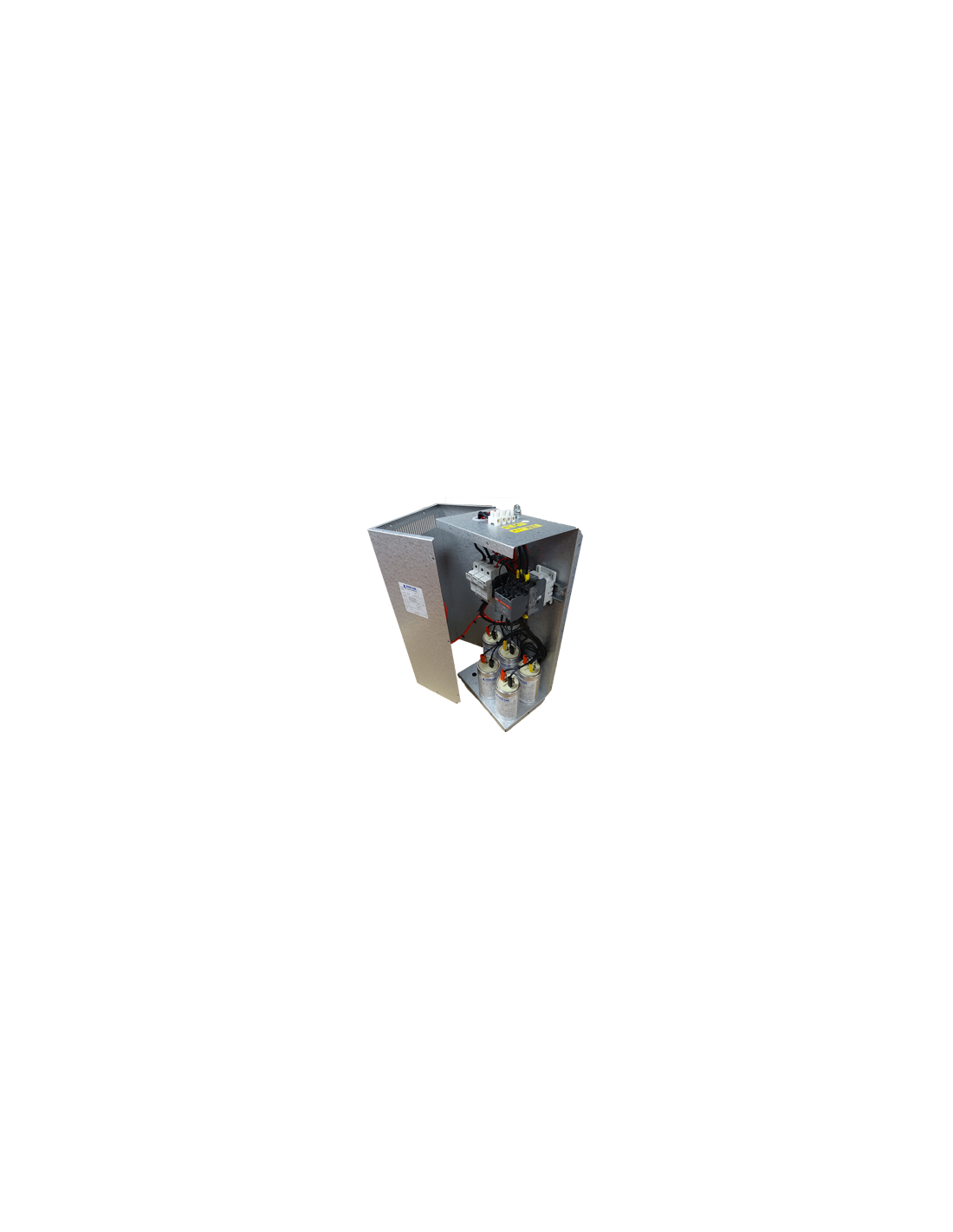

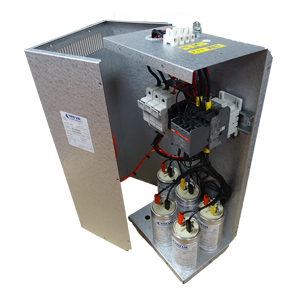

230V Single-phase capacitor batteries
Delivery throughout Europe
Secure payment
English speaker +33535565788
Automatic single-phase capacitors batteries
Improve the power factor on the network point targetted, and the reactive energy flow.
In case of short current peaks (motor start...), they prevent an untimely tripping.
Improve the electrical system's performance.
From 40% of the CT current, the electronic plate turns on the contactor and sets it at 30% of the CT current set up.
Characteristics:
A current transformer must be set up after the capacitor's battery on the electricity network.
Power supply: single-phase 230V + earth.
Power: 6kVar.
Rated frequency: 50Hz.
Voltage maximum value: 1,10Un (max 8h for 24h).
Protection grade: IP 31/IP 00.
Insulation voltage between the terminals: 890V/10sec.
Insulation voltage between the terminals and the box: 3000V Ac/60sec.
