Fixed capacitors' batteries

Fixed capacitors' batteries for reactive energy compensation:

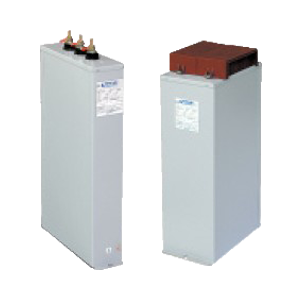

CTA, CTE and CTM capacitors are perfect for compensating loads. The modular three-phase capacitors are designed to compensate industrial networks in low voltage. Their modular design simplify their installation and assembly. The external case is made of a burst proof sheet steel which allows optimum heat dissipation. Inside, there are three single-phase units, which are equipped with pressure sensitive disconnectors.

Dielectric: dry (without PCB) metallized polypropylene (MKP). Capacitance tolerance: -5% / +10%
Power supply: three-phase + earth Rated frequency: 50Hz - 60Hz . Maximum voltage value: 1,1Un (max 8 hours out of 24)
Temperature class: -25°C / C . Maximum operating temperature value: +50°C daily average: +40°C yearly average: +30°C
Degree of protection: (CEI EN 60.529): with cover IP 40
Reference standards: CEI EN 60831-1/2, IEC 831-1/2
Test voltage: beween terminals: 2,15 Un/10sec. Between terminals and case: 3000V ac / 10sec
Dielectric losses: = 0,2W/kvar Total losses of the capacitors: = 0,4 W/kvar.
Discharge resistor: 50V in 3min - included
Chokes which reduce the switch-on inrush current: not included
Mounting: vertical Type of service: continuous for indoors.
