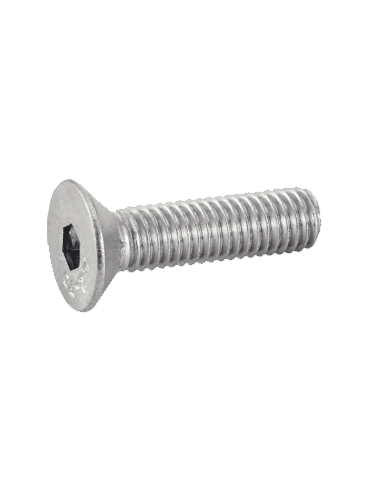

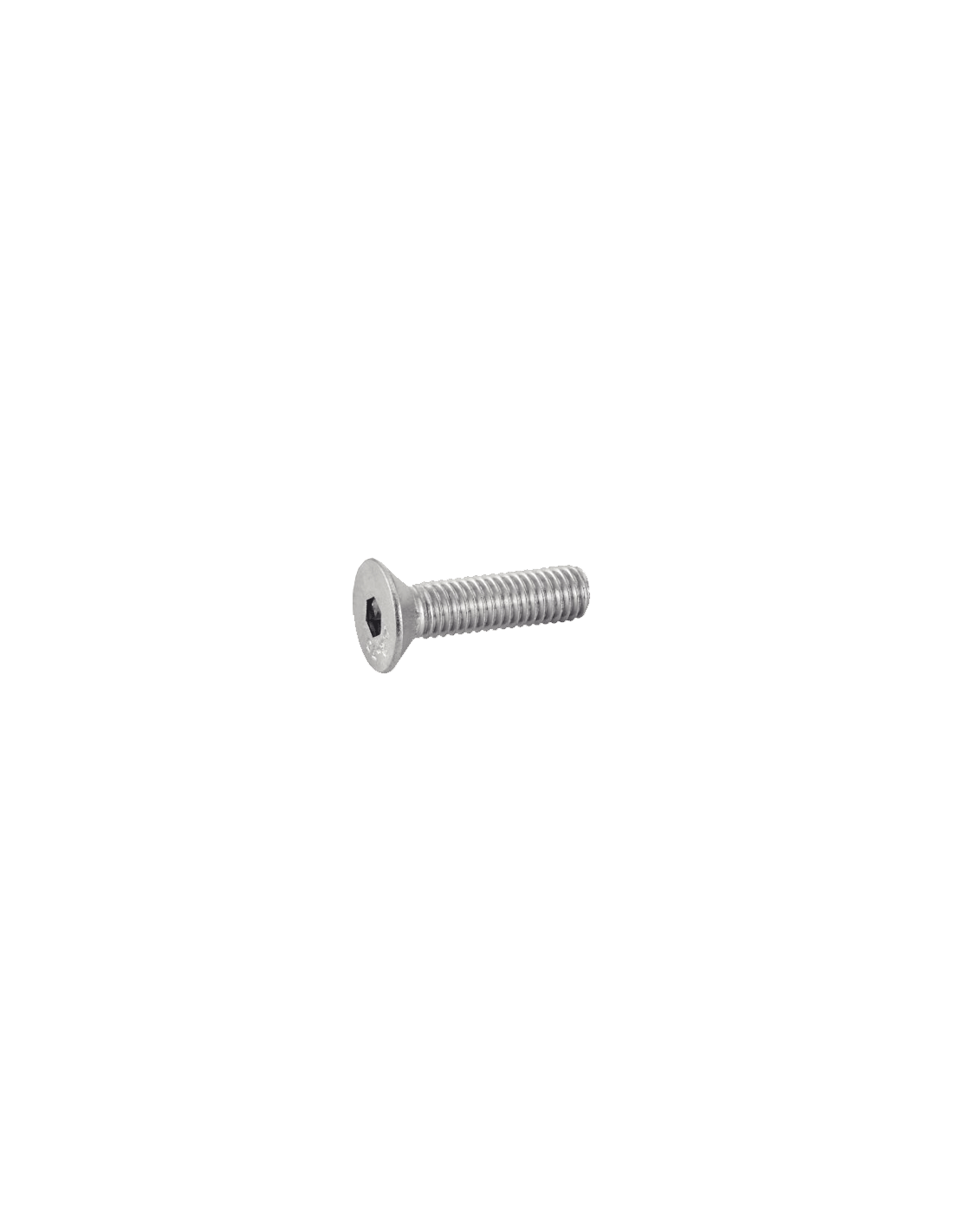

Flat countersunk head FHC screw in stainless steel DIN 7991

Flat countersunk head FHC screw in stainless steel

More
Thread length
Knockout size
VIX_FHC_M10X30_INX00
€67.80 -5%
From €64.41 Excl. tax

Information request
close

Product information request




Delivery throughout Europe



Secure payment



English speaker +33535565788



Characteristics:
Product category A
Tolerance class ISO 4759
Mechanical characteristics according to ISO 3506/1
Class/Material: INOX A2
UNI: 5933
Family: 14661
ISO: 10642

DIN and UNI standards are supposed to be identical, whereas ISO standard has a significant change in dk-k-b. Products generally follow DIN/UNI standards. The table refers to DIN standard.

Reference
d x L
dk
k
s
L
Thread
Packing
M4
VIX_FHC_M4X08_INX100
M4 x 08
8
2.3
2.5
TF
0.7
100
VIX_FHC_M4X10_INX100
M4 x 10
8
2.3
2.5
TF
0.7
100
VIX_FHC_M4X12_INX100
M4 x 12
8
2.3
2.5
TF
0.7
100
VIX_FHC_M4X16_INX100
M4 x 16
8
2.3
2.5
TF
0.7
100
VIX_FHC_M4X20_INX100
M4 x 20
8
2.3
2.5
TF
0.7
100
VIX_FHC_M4X25_INX100
M4 x 25
8
2.3
2.5
TF
0.7
100
M5
VIX_FHC_M5X10_INX100
M5 x 10
10
2.8
3
TF
0.8
100
VIX_FHC_M5X12_INX100
M5 x 12
10
2.8
3
TF
0.8
100
VIX_FHC_M5X16_INX100
M5 x 16
10
2.8
3
TF
0.8
100
VIX_FHC_M5X20_INX100
M5 x 20
10
2.8
3
TF
0.8
100
M6
VIX_FHC_M6X10_INX100
M6 x 10
12
3.3
4
TF
1
100
VIX_FHC_M6X12_INX100
M6 x 12
12
3.3
4
TF
1
100
VIX_FHC_M6X16_INX100
M6 x 16
12
3.3
4
TF
1
100
VIX_FHC_M6X20_INX100
M6 x 20
12
3.3
4
TF
1
100
VIX_FHC_M6X30_INX100
M6 x 30
12
3.3
4
TF
1
100
M8
VIX_FHC_M8X12_INX100
M8 x 12
16
4.4
5
TF
1.25
100
VIX_FHC_M8X16_INX100
M8 x 16
16
4.4
5
TF
1.25
100
VIX_FHC_M8X20_INX100
M8 x 20
16
4.4
5
TF
1.25
100
VIX_FHC_M8X25_INX100
M8 x 25
16
4.4
5
TF
1.25
100
VIX_FHC_M8X30_INX100
M8 x 30
16
4.4
5
TF
1.25
100
VIX_FHC_M8X40_INX100
M8 x 40
16
4.4
5
TF
1.25
100
M10
VIX_FHC_M10X30_INX100
M10 x 30
20
5.5
6
TF
1,5
100


Schéma vis FHC à tête fraisée plate en inox
