For small loads reactive energy compensation
Delivery throughout Europe
Secure payment
English speaker +33535565788

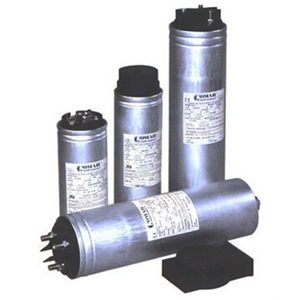

Capacitor for reactive energy compensation: CTB capacitors represent the ideal solution to compensate for small loads. Assembled in banks, they can be used in automatic P.F.C. equipment. Assembled in cylindrical aluminum case, covered with a protective plastic cap made of flame retardant material, manufactured using self-healing metallized polypropylene film with low losses and P.C.B. free.
Characteristics:
- Power supply: Three-phase.
- Capacitance tolerance: -5% / +10%.
- Rated frequency: 50 Hz - 60 Hz.
- Maximum voltage value: 1.1Un (max 8h out of 24).
- Deviation voltage/time: 25V / µ sec.
- Dielectric: metallized polypropylene (MKP).
- Execution: Dry type (without P.C.B).
- Dielectric losses: = 0,2 W/kvar.
- Total losses of the capacitors: = 0,4 W/kvar.
- Expected life: 60 000 hours.
